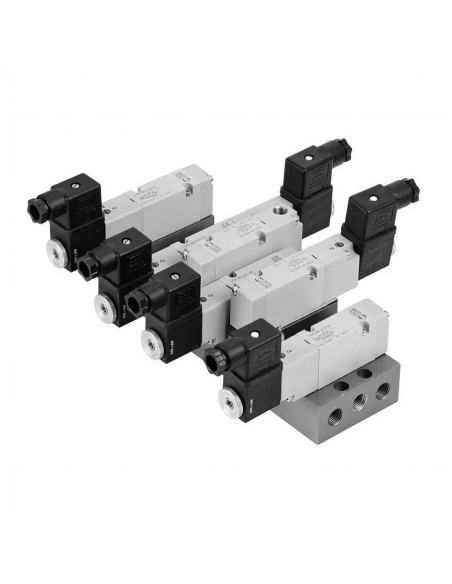

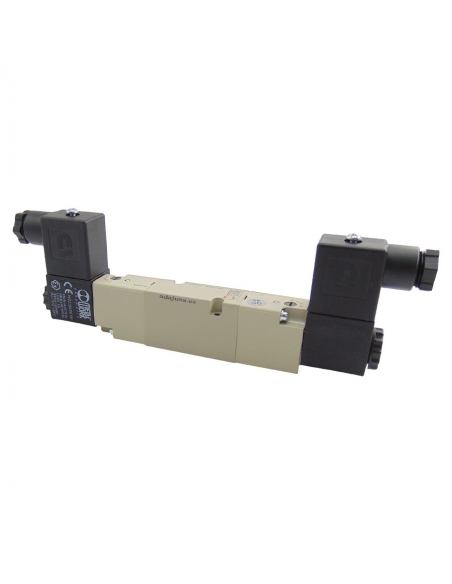

Solenoid valve 5/3 assisted closed centers 24 Vdc series 70 on the basis - Metal Work

• Solenoid valve 5/3 assisted monostable closed centers
• 2 Coils 24Vdc 2W
• 2 Connectors 22 mm

• Manufacturer: Metal Work
• Reference: 7011022400 - SOV B6 SES CC
• Pressure (bar): Empty +/- 10
• Minimum pressure (bar): 2.5
• Operating temperature (ºC): -10 +/- 60
• Nominal diameter (mm): 5
• Conductance C (N| /min - bar): 107.69
• Critical ratio b (bar): 0.29
• Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
• Flow at 6 bar ∆P 1 bar (N| /min): 450
• Monostable TRA/TRR at 6 bar (ms): 15 / 35
• Tension tolerate (%): -10 +/- 15
• Insulation class: F 155
• Maximum torque core coil (Nm): 1
• Voltage: 24 Vdc
• Power: 2 W

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
