Foot support 20mm shaft in stamped sheet metal BPP series - ISB

€1.89 Tax included

€1.56 tax excl.

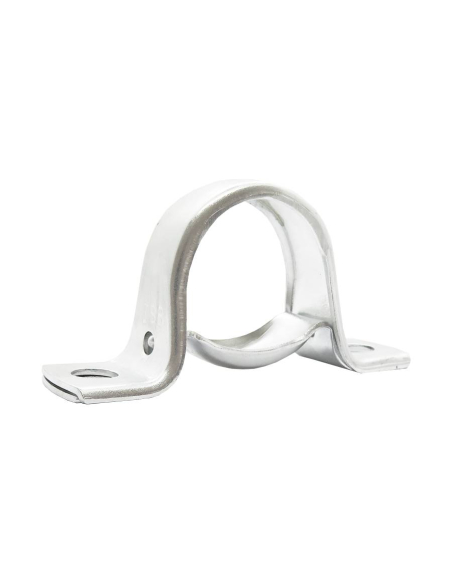

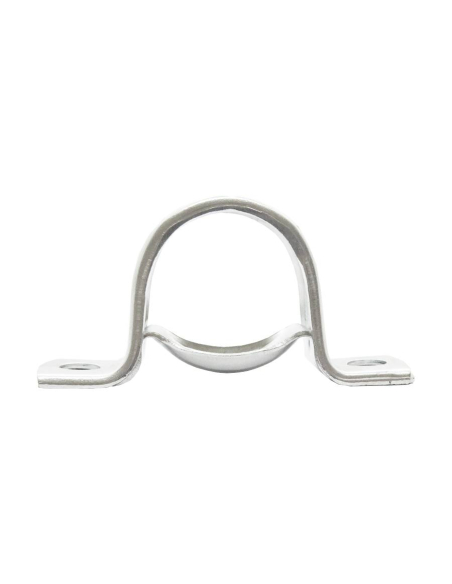

Bridge type support, valid for bearings with 20mm diameter shaft. Formed by two pieces made of stamped steel sheet. Self-aligning support for the insertion of ball bearings.

Compatible with bearings of the SA2 and SB2 series of the brand ISB

Reference: BPP-20


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Self-aligning plummer block housing, manufactured in two pieces of stamped sheet steel, for bearings with 20mm diameter shafts. Bridge type support for the insertion of SA2 and SB2 series ball bearings of the brand ISB.

Compatible with SA2 series bearings: SA204-2RS (20mm shaft)
Compatible with SB2 series bearings: SB204-2RS (20mm shaft)

This type of housing together with a bearing is free to oscillate in the respective housing raceway, is able to compensate for any misalignment and eliminate any possible stress between the shaft and the housing.

The field of application of this type of bearing housing is industrial and general applications with normal loads, low to medium rotational speeds.

Stamped sheet or plate housings have a high speed of rotation and high elasticity. These housings combine lightness with optimum mechanical strength. In some cases, this type of support can be subject to deformation when subjected to high loads, which can vary depending on the direction and load. In addition, the shape of the support and the thickness of the plates can influence the amount of deformation. The permissible load must therefore be such that the resulting deformation does not impair the functionality of the support. The permissible load is approximately 1/3 of the base load value in radial direction and 1/3 of the permissible radial load in axial direction.

Typical applications:

  • Agricultural machines
  • Gardening machines
  • Fitness machines
  • woodworking machines, marble processing machines...
  • Bottling machines
  • Production lines

Reference: BPP-20-ISB


Dimensiones soportes UCP ISB

  • d: 20 mm
  • h: 25.4 mm
  • a: 98 mm
  • e: 76 mm
  • s: 9.5 mm
  • g: 3.2 mm
  • w: 50.6 mm
  • Bolt size: M8

: Only the housing is included in the scope of delivery. The bearing must be purchased separately

Material for industrial use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
