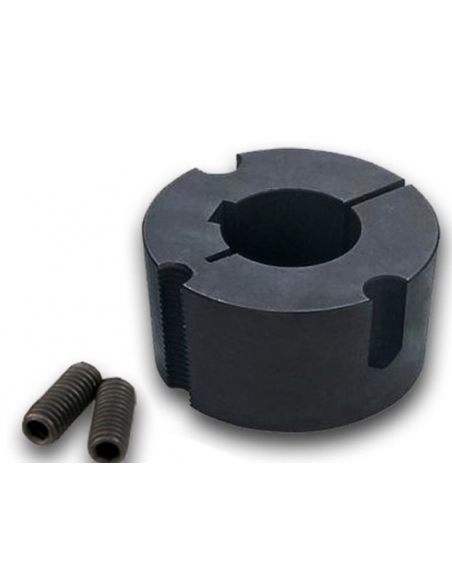

Conical bushing - taper lock size 3030
Conical bushing - taper lock size 3030

Tapered Cap - taper lock size 3030

€75.59 Tax included

€61.96 tax excl.

Conical Cap , size 3030 . Conical bushings are the most suitable and practical system for mounting pinions, pulleys, and transmission elements on shafts, without having to use special tools or resort to special machining, allowing great time savings and ease of assembly.

Reference: TL 3030-0xx

Bushings are supplied with the hole finished to the selected diameter, keyway standardized for the selected shaft diameter, studs and screws.

The available shaft diameters are selected in the side menu (right).



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Shaft diameter
  • 38 mm
  • 40 mm
  • 42 mm
  • 45 mm
  • 48 mm
  • 50 mm
  • 55 mm
  • 60 mm
  • 65 mm
  • 70 mm
  • 75 mm

No queries yet, leave the first!
Privacy
Shipments
Returns


Conical fixing Cap , also called taper-lock, taper-bush, conical bushing..., are the most suitable and practical system for mounting pinions, pulleys, and mechanical transmission elements on shafts with keyways.

By using these elements, you avoid having to resort to special machining or particular tools. The pulley or transmission element is already supplied machined for the assembly of these elements, which allows great time savings and ease of assembly.

The conical bushing is supplied with the hole and keyway already machined to the diameter selected by the customer, with all the studs and screws.

They are supplied in GG25 machined iron.



Dimensions:

Dimensions-taper

  • Size: 3030.
  • Available diameters: 32,35,38,40,42,45,48,50,55,60,65,70 and 75.
  • Tightening torque: 90.0.
  • D1: 108.0mm.
  • Type: A.
  • S: 76.2

Keyway dimensions depending on shaft diameter:

Dimensions-metric-hole

Material for professional use, install in compliance with the regulations in force at the installation site.
