Conical bushing - taper lock size 4040

Name: Conical bushing - taper lock size 4040
Brand: Generico-TE
SKU: 92R-T4040
Price: 174.59 EUR
Availability: BackOrder

€174.59 Tax included

143.11 tax excl.

92R-T4040-60

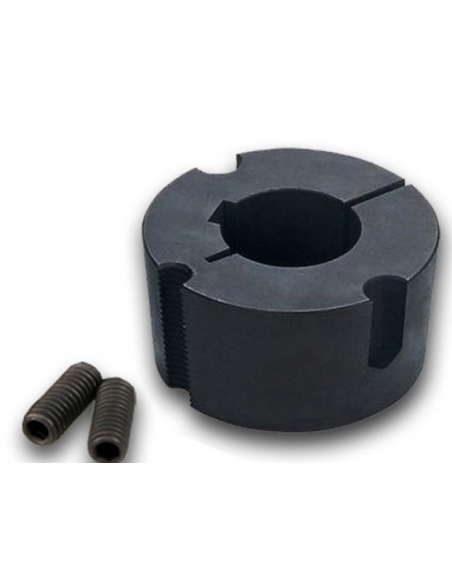

Conical bushing, size 4040. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.

Reference: T.L 4040-0xx

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

The available shaft diameters are selected from the side menu (right).

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Shaft diameter

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Conical fixing bushing, also called taper-lock, taper-bush, conical bushing ..., are the most suitable and practical system for the assembly of sprockets, pulleys, and mechanical transmission elements on axles with chaveteros.

By using these elements, you avoid having to resort to special machining or particular tools. The pulley or transmission element is already supplied machined for the assembly of these elements, so they allow a great saving of time and ease of assembly.

The conical bushing is supplied with the hole and chavetero already machined to the diameter selected by the customer, with all prisoners and screws.

They are supplied in GG25 machined iron.

Dimensions:

Dimensiones-taper

Size: 4040.
Available diameters: 60,65,70,75,80,85,90 and 95.
Tightening torque: 169.0.
D1: 146.0 mm.
Type: B.
S: 101.6

Dimensions of the chavetero as a function of the diameter of the shaft:

Dimensiones-agujero-metrico

Material for professional use, install in compliance with the regulations in force at the place of installation.
