Thermal relay regulation 4 to 6A - Schneider

Check delivery time
€39.05 Tax included

€32.27 tax excl.

Three-phase thermal relay for overload protection of electric motors. The regulation of the thermal relay is between 4 and 6 A.

Reference: LRD10

Esquema electrico rele termico

Logo-Schneider

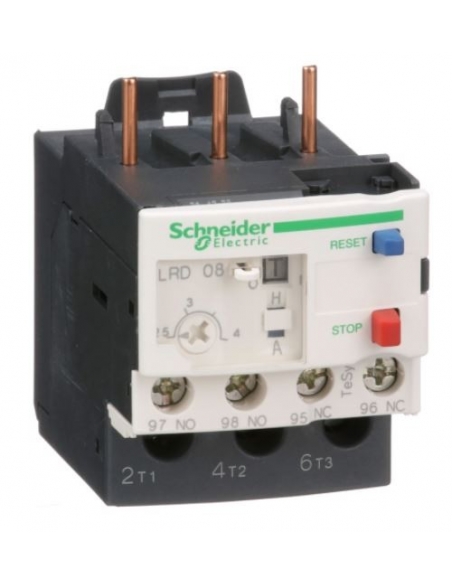

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase thermal relay of the TeSys Schneider series, for protection of electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). The rearmament can be selected to occur automatically or manually by means of a button located on the body of the thermal relay. It has room temperature compensation.

The thermal relay is designed to be coupled directly to the output of an LC1D series contactor, it can also be fixed to a din-rail using the available adapter.

Characteristics of the thermal relay:

  • Manufacturer: Schneider Electric
  • Series: TeSys
  • Reference: LRD10
  • Regulation margin: 4 to 6A.
  • Nominal voltage Ue: 690V.
  • Insulation voltage: 690V.
  • Maximum Uimp peak voltage: 6kV.
  • Shooting class: 10
  • Degree of protection: IP20
  • Compatible with contactors:
    • LC1D25
    • LC1D38
    • LC1D12
    • LC1D09
    • LC1D18.. D38
    • LC1D32
  • Compensation of the ambient temperature between -20 and 60ºC.
  • Weight: 0,124 Kg.
  • Dimensions: 66x45x70mm
  • Standard: IEC60947-4-1, IEC60947-5-1,EN50495


To expand the information you can download the technical sheet by clicking on the "Attachments" tab
Material for professional use, install in compliance with current regulations at the place of installation.
