€22.20 Tax included

€18.35 tax excl.

Three-phase thermal relay for mini contactor, offers protection by overload of electric motors. The regulation of the thermal relay is between 0.25a to 0.4A.

Reference: GTK-12M 0.33A 3H.

Esquema electrico rele termico

Logotipo LS LG industrial Systems



Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

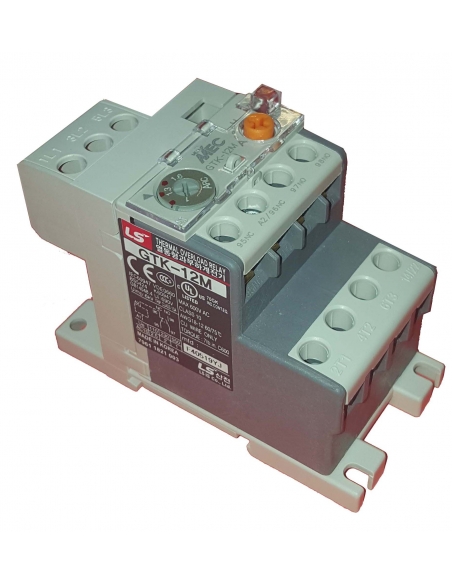

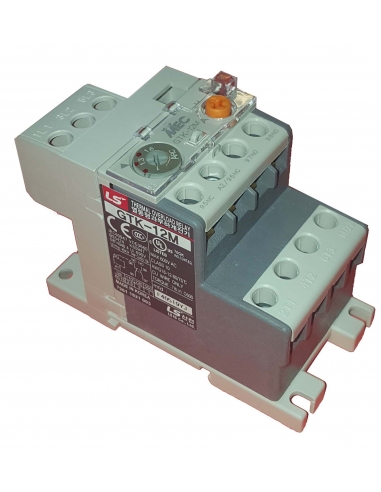

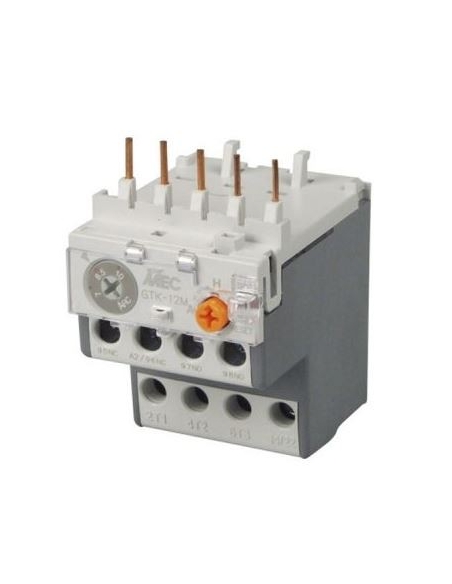

Mini three-phase thermal relay for protection of electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). The rearmament can be selected to occur automatically or manually by means of a pushbutton located on the body of the thermal relay. It has room temperature compensation.

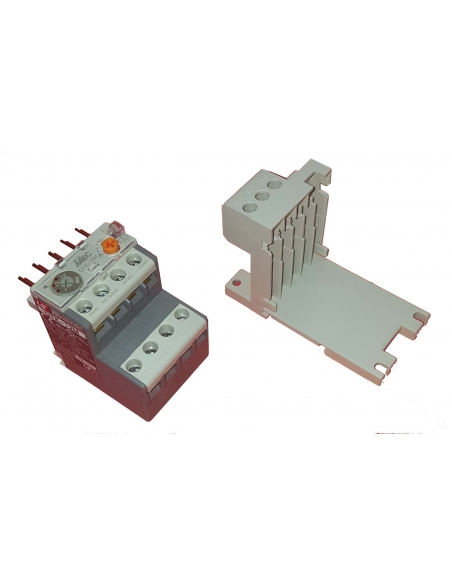

The thermal relay is designed to be coupled directly to the output of a contactor, or mounted on the terminal with coupling for din-rail (included in the supply).

Characteristics of the thermal relay:

  • Manufacturer: LG - LS.
  • Reference: GTK-12M 0.33A 3H
  • Regulatory margin: 0,25a to 0.4A.
  • Rated voltage Ue: 690V.
  • Insulation voltage: 690V.
  • Maximum uimp peak voltage: 6kV.
  • Shooting class: 10.
  • Compatible with GMC and GMD minicontactors from 6 to 16a.
  • Assembly; integrated on the contactor, or on din-rail using the supplied base.
  • Compensation of the ambient temperature between -5 and 40ºC.
  • Weight: 0,1 Kg.

Attention: For mounting on the contactor you have to remove the mounting base.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
Material for professional use, install respecting the regulations in force at the place of installation.
