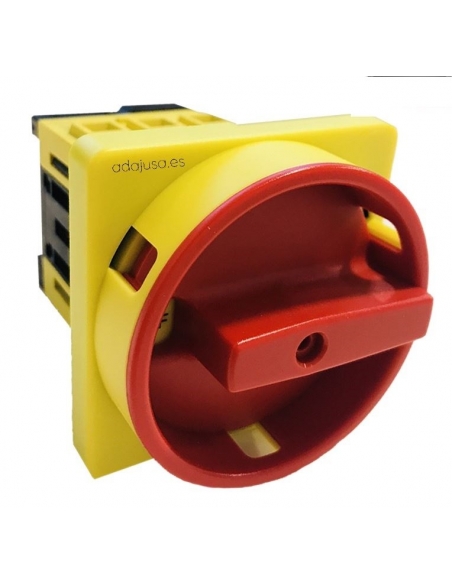

3-pole disconnector switch 40A complete 67x67mm - Giovenzana
3-pole disconnector switch 40A complete 67x67mm - Giovenzana

Disconnector switch 3 poles 50A full 67x67 yellow red series SQ Giovenzana

€41.71 Tax included

€34.47 tax excl.

Three-phase disconnector switch 50A Category AC23A, rotary control 90º 0-1 of 67x67mm yellow with lever in red, possibility of locking by padlocks, made according to the strictest European standards that allow to comply with the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

Reference: GISQ4067503R

Esquema interruptor seccionador trifasico
Giovenzana
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!


Three-phase disconnector switch 50A category AC23A, for inductive loads (Electric modors) and control in general.
Equipped with rotary control 90º with two positions 0-1, dimensions of 67x67mm and front yellow with lever in red. Possibility of locking by padlock.

This series of rotary switches have been made in accordance with strict European and international standards (IEC/EN 90947-3, UL508), which allows them to meet all safety requirements.
Mounting by fixing panel (back frame), IP20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

In addition to the mounting panel (back frame) the disconnector switch can be installed on din-rail fixing it by its base. An auxiliary contact can also be added and converted into 4 poles.

The supply includes:

  • Three-phase switch: 50A
  • Front controller: 050/0001

characteristics:

  • Brand: Giovenzana
  • Vendor reference: SQ040033R
  • number of poles: 3
  • Rated voltage Ue: 690V
  • Nominal intensity Ie (AC23A): 50A
  • Nominal thermal intensity ith: 63a.
  • Rated interrupt capacity: 8kA.
  • Contacts: Slow opening of double interrupt.
  • Number of maneuvers / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuver angle: 90º.
  • Built-in assembly.
  • Degree of protection:
  • Controls type 1-4-4X: IP-65.
  • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

Table of intensities and powers of employment:

  • Use category AC-21A: 63a.
  • Use category AC-22A: 63a.
  • Use category AC-23A:
    • Standard three-phase motors 230Vac: 63a
    • Standard three-phase motors 400Vac: 50A
  • Use category AC-3:
    • Standard three-phase motors 230Vac: 45A
    • Standard three-phase motors 400VAc: 40a

    dimensions:

    Dimensiones interruptor seccionador 25A Giovenzana

    assembly:

    Montaje interruptor de levas trifásicos
    Material for professional use, has to be installed respecting the regulations in force at the place of installation.
