Three-phase transformer 6.3 KVA 400/230+N with IP23 enclosure

Special manufacturing material
€564.82 Tax included

462.97 tax excl.

TRT6-400/230

Three-phase transformer of 6.3kVA with metal enclosure that allows voltage adaptation between line and receiver in three-phase systems, 400Vac to 230Vac (generates neutral), star configuration of input and output windings, accessible neutral in the secondary. Mounted in metal enclosure with IP-23 protection degree.

Part number: TRT1-6,3

Esquema trasformador trifasico con pantalla 400-230

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Three-phase transformer for voltage change, galvanic separation of circuits or machinery, dry type. Star-connected input and output windings and accessible neutral in the secondary winding.

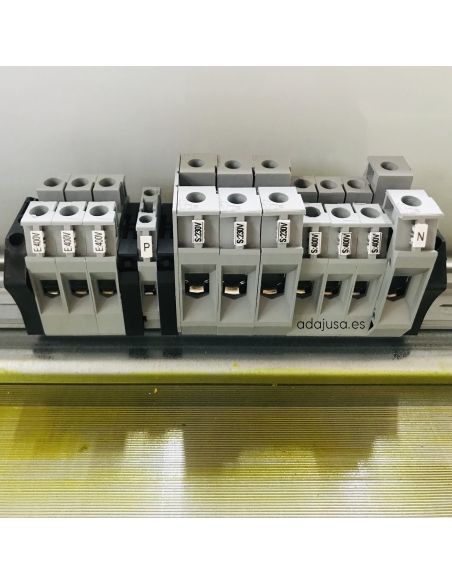

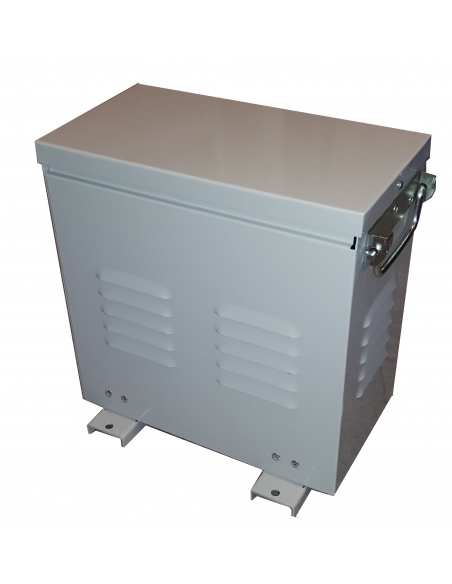

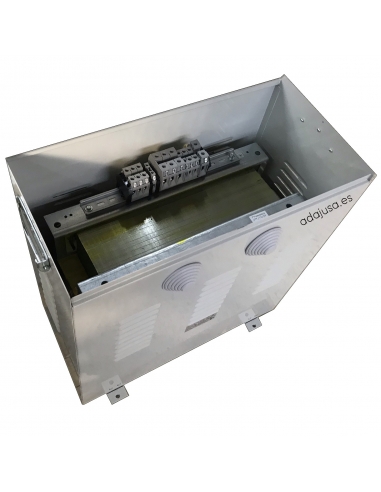

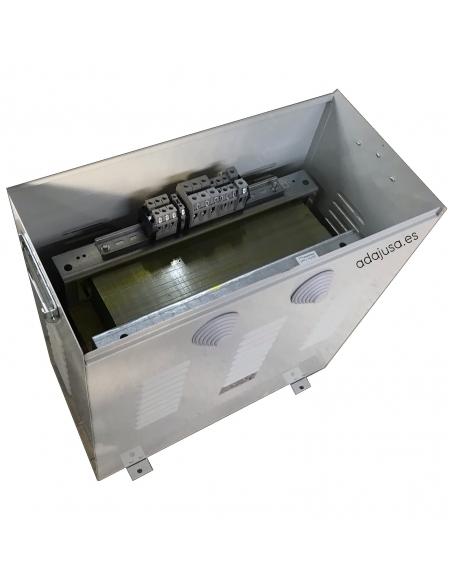

They are supplied in a metallic box that provides an IP-23 insulation degree, connection by means of terminals. They do not incorporate any overload protection circuit.

Manufactured with low-loss magnetic plate providing high performance.

Technical characteristics:

  • Reference: TRT1-6,3
  • Windings: Thermal class N 200ºC.
  • Primary voltage: 400Vac.
  • Secondary voltage: 230 Vac.
  • Power: 6,3KVA.
  • Apparent current:
    • 400Vac: 9A
    • 230Vac: 15.8A
  • Frequency: 50/60Hz.
  • Connection: Yyn0.
  • Test voltage: 3KV between windings and ground.
  • Insulation: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metal enclosure).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certification: UNE-EN 61558, UNE-EN 60076.

Dimensiones de transformadores trifásicos

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Buongiorno, siamo alla ricerca di un trasformatore trifase per rendere compatibile allo standard elettrico europeo 400VAC un chiller in nostro possesso modello SMC cod. HRS 090-WF-20 di cui vorrei farvi verificare le specifiche per conferma fattibilità tecnica. Ci occorrono 2 pcs. del trasformatore in oggetto asap in versione inscatolata con scocca di protezione (installazione del trasformatore in area produttiva vicino al chiller in questione). Credo il prodotto corretto sia "TRASFORMATORE TRIFASE 6 KVA 400/230+N CON SCATOLA IP23" ma vorrei avere vostra conferma della sua correttezza per la nostra applicazione prima di acquistare. Vogliate per favore contattarmi per condivisione specifiche dell'applicazione. Grazie mille e cordiali saluti ______ Francesco Maja Head of Additive Manufacturing Engineering & Production M: +41 76 386 79 41 [email protected] GF Machining Solutions SA TU Advanced Manufacturing Via Zandone 5 6616, Losone (TI) Switzerland
Answer

Buon pomeriggio,

Il trasformatore scelto è per reti trifase, permette di convertire una tensione di ingresso trifase 400Vac in trifase 230Vac+N. e può supportare carichi di 4kW. Tenere conto che il calcolo della potenza di un trasformatore deve essere fatto sovradimensionando del 20% per un corretto funzionamento e per evitare problemi e guasti dovuti al sovraccarico.

Verificare che sia il prodotto adatto alla propria applicazione e soprattutto che la potenza del trasformatore scelto sia adeguata.

Saluti

ADAJUSA

Francesco Maja on 01/23/2023 12:33:33
