Triple toothed discs or chains Z32 3/8 x 7/32 6B-3 ISO DIN 606

€30.02 Tax included

€24.81 tax excl.

Toothed discs or triple toothed chains Z32 for roller chain 3/8" 06B-3 according to European standard DIN ISO 606

Reference: DISCO Z32 3/8 TRIPLE

ISO: 06B-3 (3/8" x 7/32")

Teeth: 32

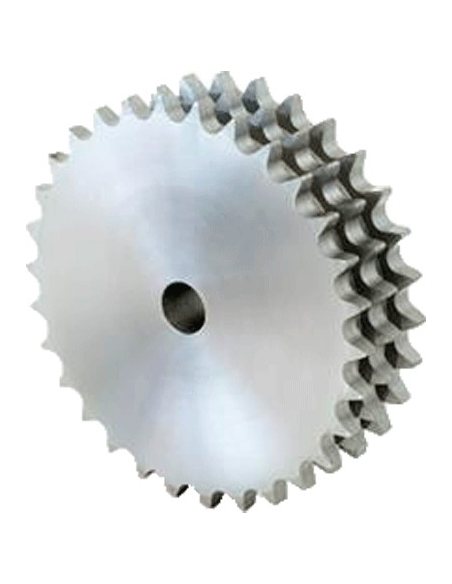

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Z32 (32 teeth) triple toothed discs or toothed crowns for roller chain 3/8" x 7/32" 06B-3
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISCO Z32 3/8 TRIPLE:THX

The jagged discs, or toothed crowns, are made of 1020 steel, and are used to transmit power between two axes joined through a chain to rollers.

Characteristics:

  • 3/8" x 7/32" mm ISO 06B-3
  • 9.525 X 5.72 mm
  • Teeth: 32
  • Tooth radius: 10 mm
  • Curved area width: 1 mm
  • Tooth width (L): 5.2 mm
  • Total width of teeth (H3): 25.6mm
  • Outer diameter (SD): 101.3
  • Primitive diameter (SD): 97.17
  • Hub diameter (d): 16 (non-machined shaft)


Material for professional use, install in compliance with the regulations in force at the place of installation.
