Double girth gears Z19 1 x 17.02 16B-2 ISO DIN 606 blind shaft

€152.91 Tax included

€126.37 tax excl.

Toothed discs or double toothed chains for roller chain 1" x 17.02 mm 16B-2 according to European standard DIN ISO 606

Part number: DISC Z19 1 DOUBLE

Teeth: 19

ISO: 16B-2 ( 1" x 17.02 mm )

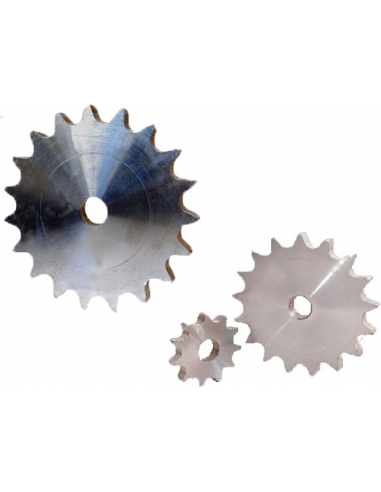

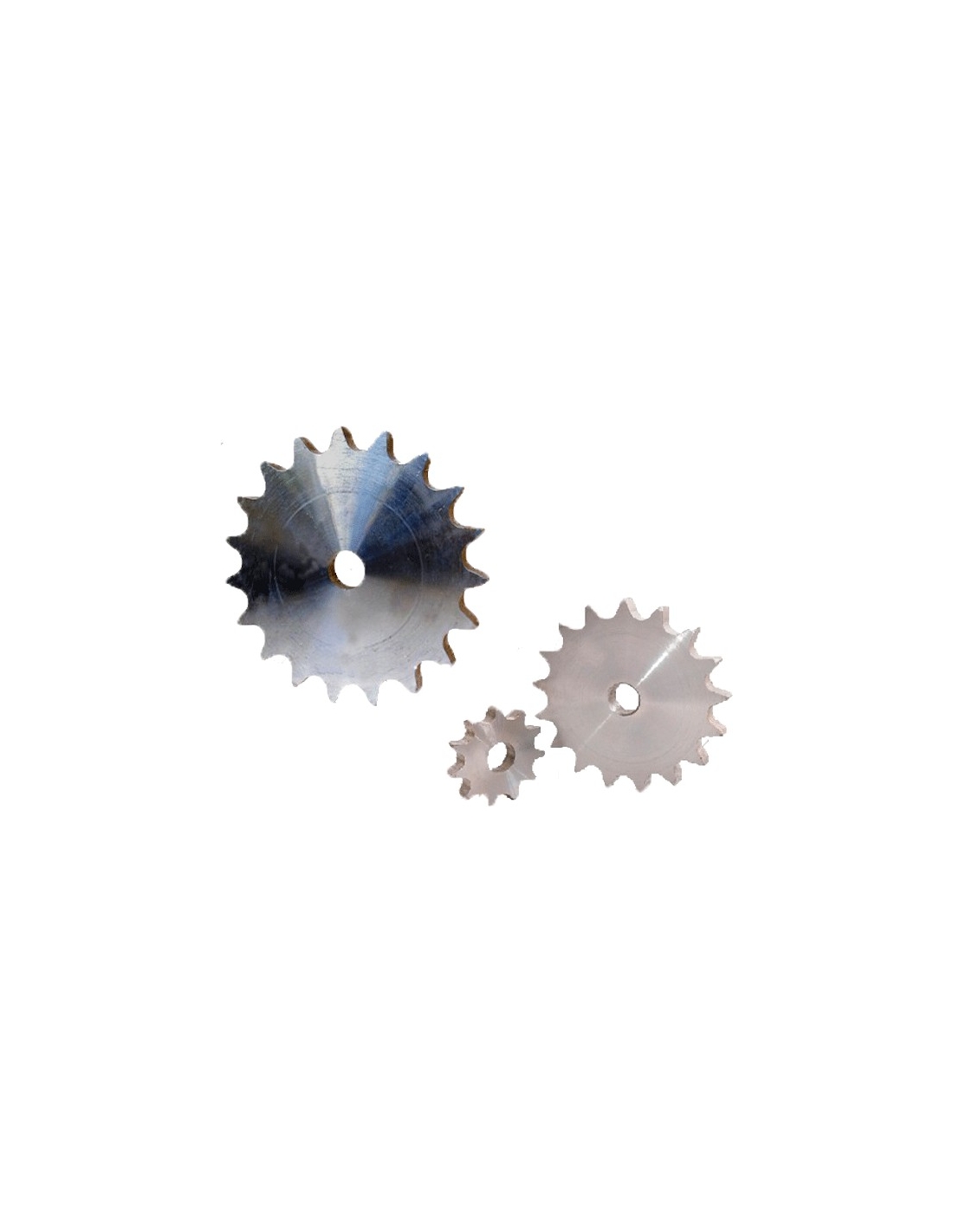

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

* Blind hole, with shaft hole size according to disc model, not customizable.

No queries yet, leave the first!
Privacy
Shipments
Returns


Z19 double sprockets (19 teeth) for roller chain 1" x 17.02 mm 16B-2.
Manufactured according to European standard DIN ISO 606

Manufacturer Technox

Reference: DISC Z19 1 DOUBLE

Toothed discs or sprockets, are manufactured in 1020 steel, and are used to transmit power between two shafts connected through a roller chain

Characteristics:

  • 1" x 17.02 mm 16B-2
  • 25.4 x 17.02 mm
  • Teeth: 19
  • Tooth radius: 26 mm
  • Curved zone width: 2.5 mm
  • Tooth width (h1): 16.2 mm
  • Outside diameter (De): 165.2
  • Primitive diameter (Dp): 154.33
  • Bushing diameter (D): 20 (shaft not machined)


Material for professional use, install in compliance with the regulations in force at the place of installation.
