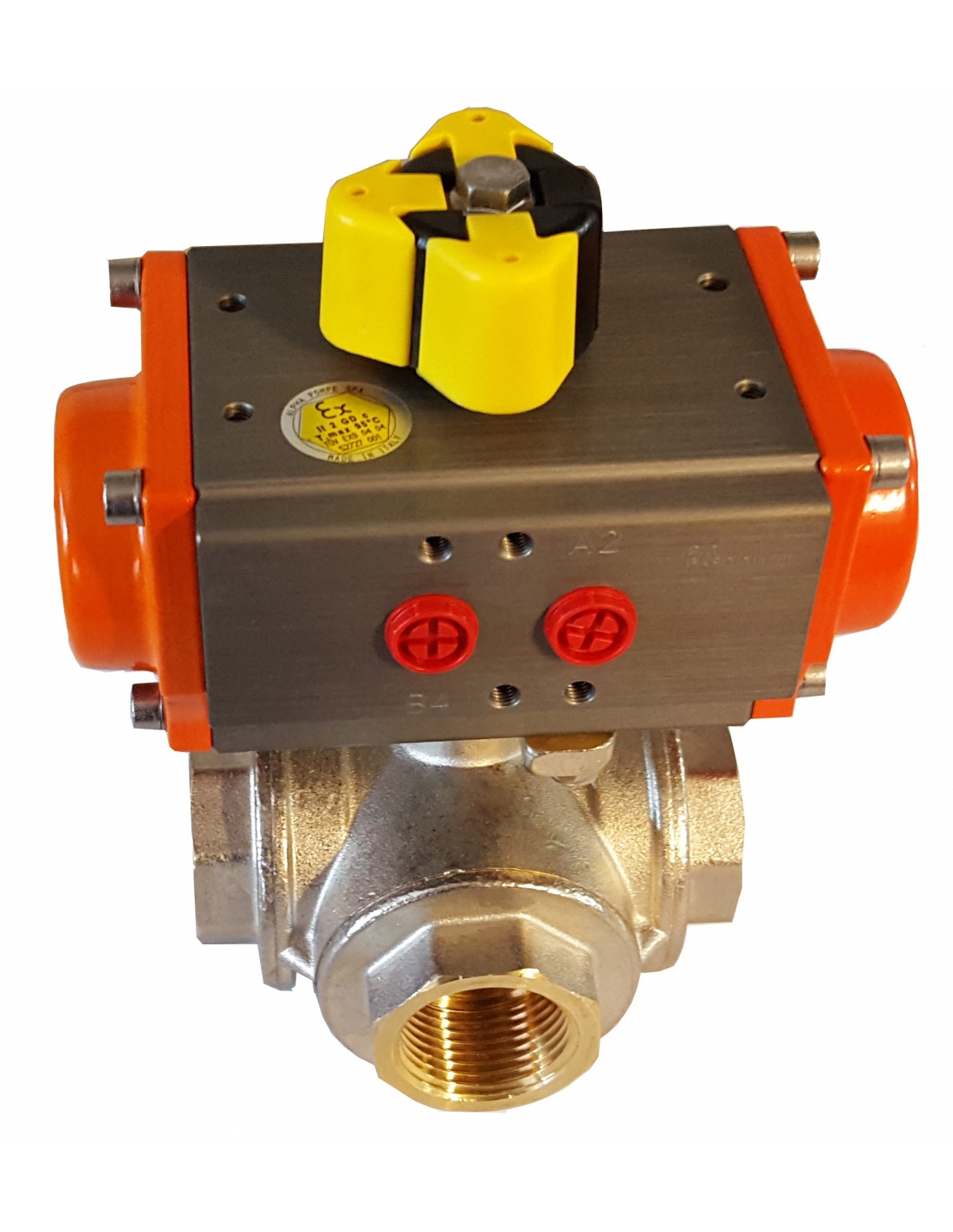

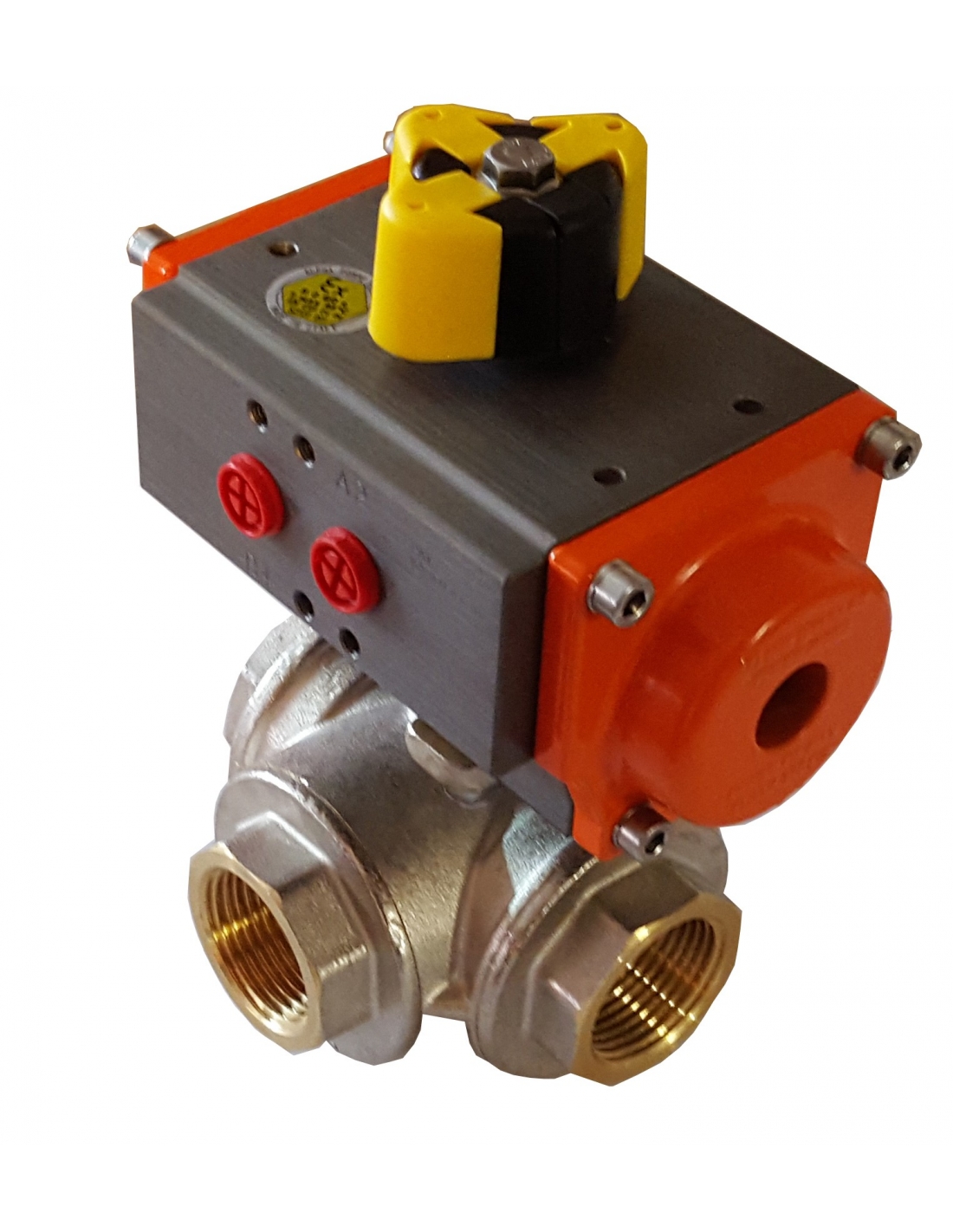

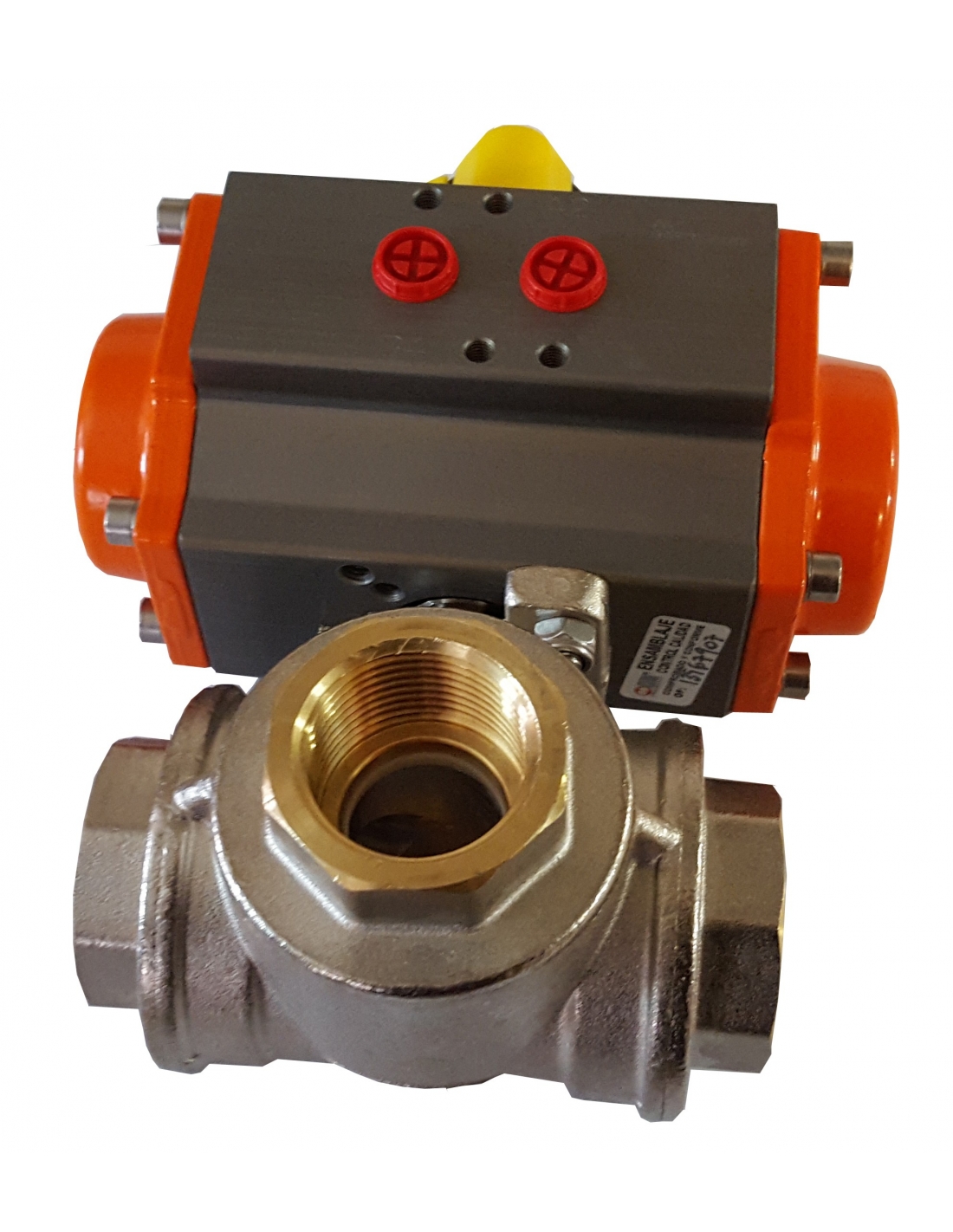

1/4 3/2-way "L" valve with pneumatic rotary actuator

Stainless steel valve 1/4 3/2-way L with pneumatic rotary actuator - Metal Work

Name: Stainless steel valve 1/4 3/2-way L with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: VB3L2IA008032
Price: 235.3014 EUR
Availability: PreOrder

€235.30 Tax included

€192.87 tax excl.

Stainless steel valve with 1/4" dial, 3 ways 2 positions, 3/2, with "L" configuration, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in stainless steel.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3L2IA008032D

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Valve of 1/4" of sphere, 3 ways 2 positions, 3/2, made of stainless steel, with configuration of the valve in "L", with pneumatic rotary actuator of double effect. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "L", in one position, the valve allows the passage from 1 to 2 or 2 to 1 remaining the 3 closed; in the other position, the step is allowed from 1 to 3 or from 3 to 1 remaining the 2 closed.

Valves with ATEX certification.

Diagrama válvula en L

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB3L2IA008032D
Actuator type: Ø32 double pneumatic effect.
Valve type: 3 ways 2 positions (3/2).
Valve configuration: in "L".
Thread type: G 1/4" female.
Valve body: AISI 316 stainless steel
Dial: stainless steel
Joints: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones actuadores neumaticos con valvulas 3 vías

Dimensiones valvulas con actuador neumático de 3 vías

Válvula en L con actuador neumático

Material for professional use, install in compliance with the regulations in force at the place of installation.
