1/4 2/2-way valve with pneumatic rotary actuator

Stainless steel valve 3/4 2/2-way with pneumatic rotary actuator - Metal Work

Name: Stainless steel valve 3/4 2/2-way with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: VB22IA020042D
Price: 180.1696 EUR
Availability: PreOrder

€180.17 Tax included

€147.68 tax excl.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB22IA020042D

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

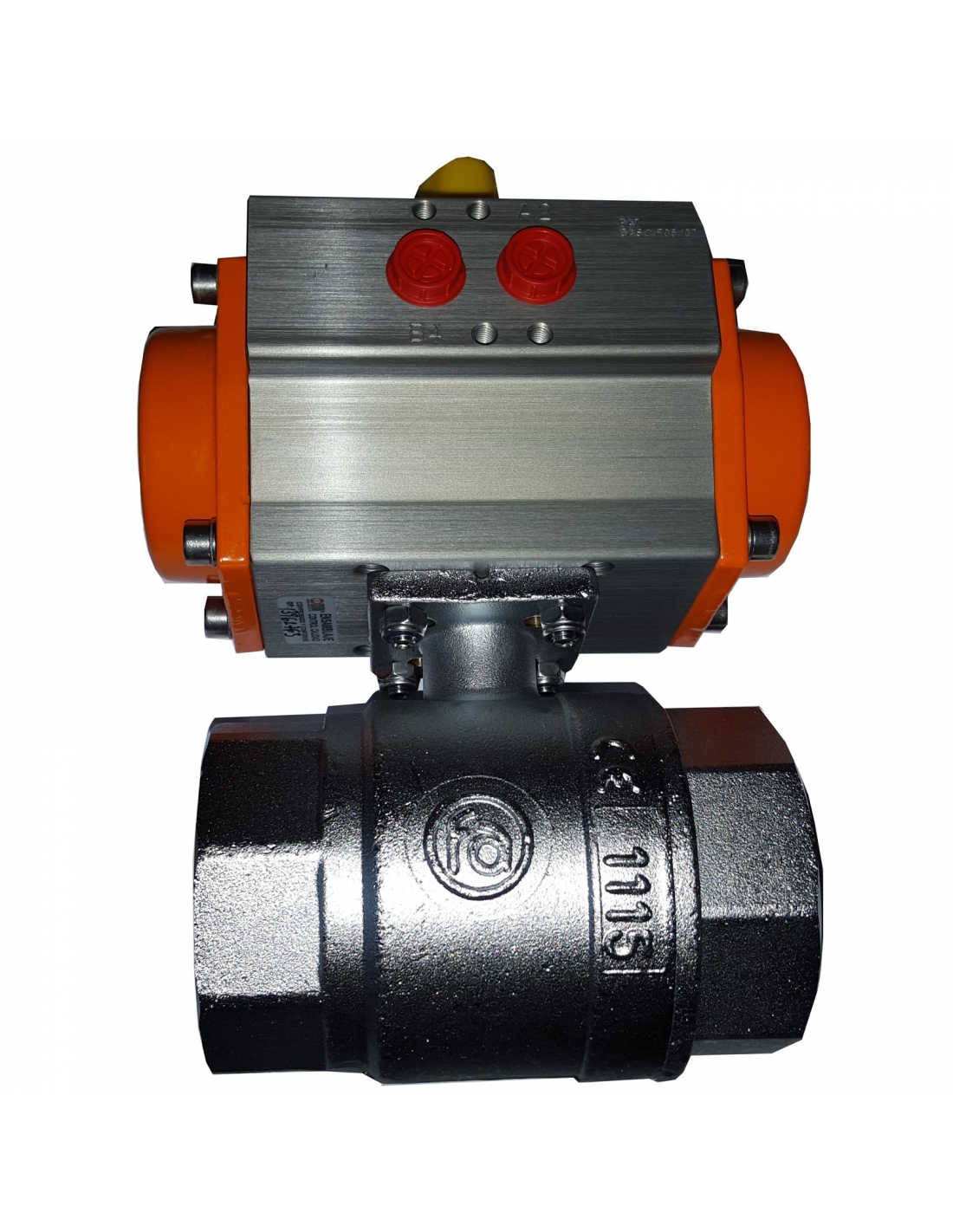

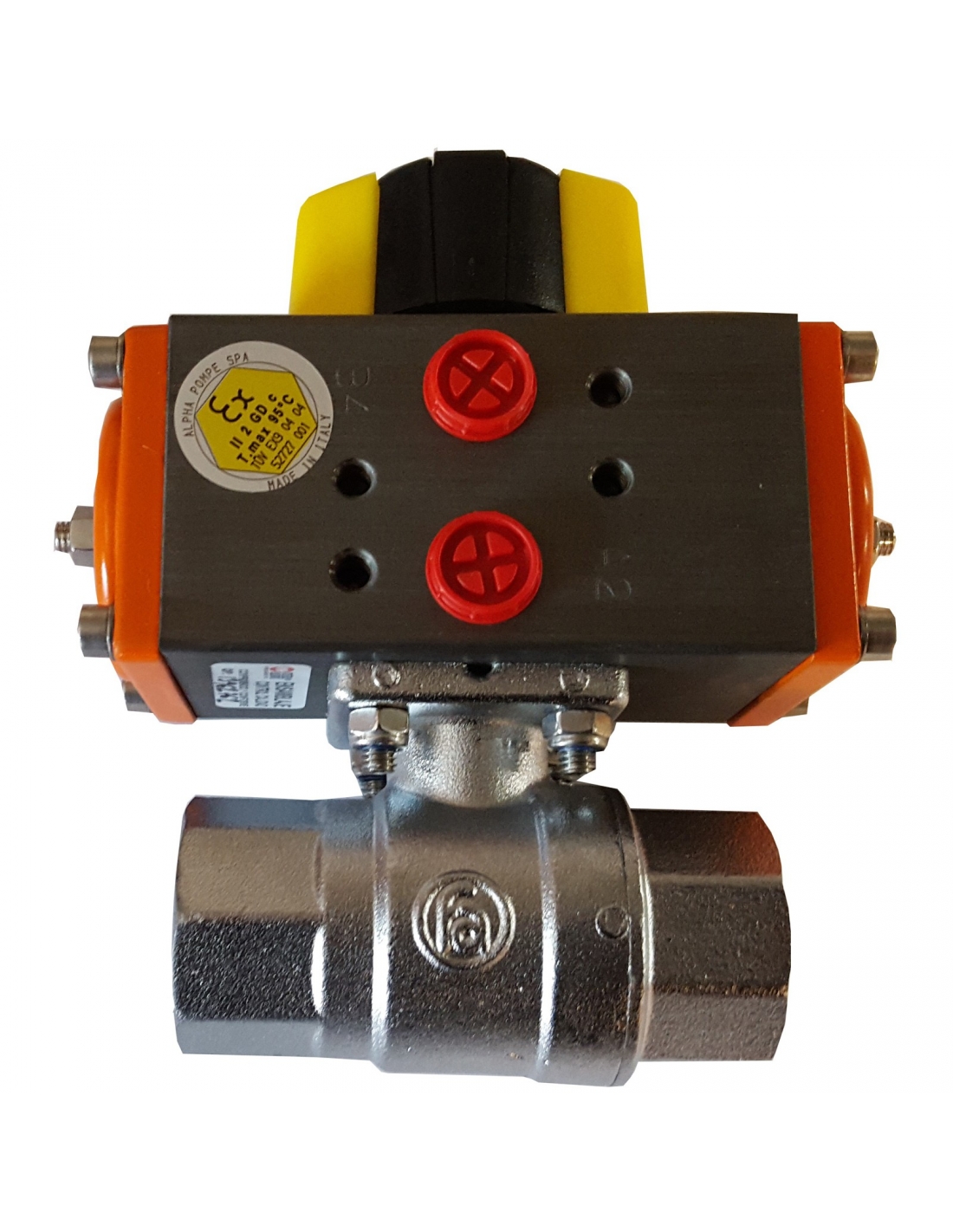

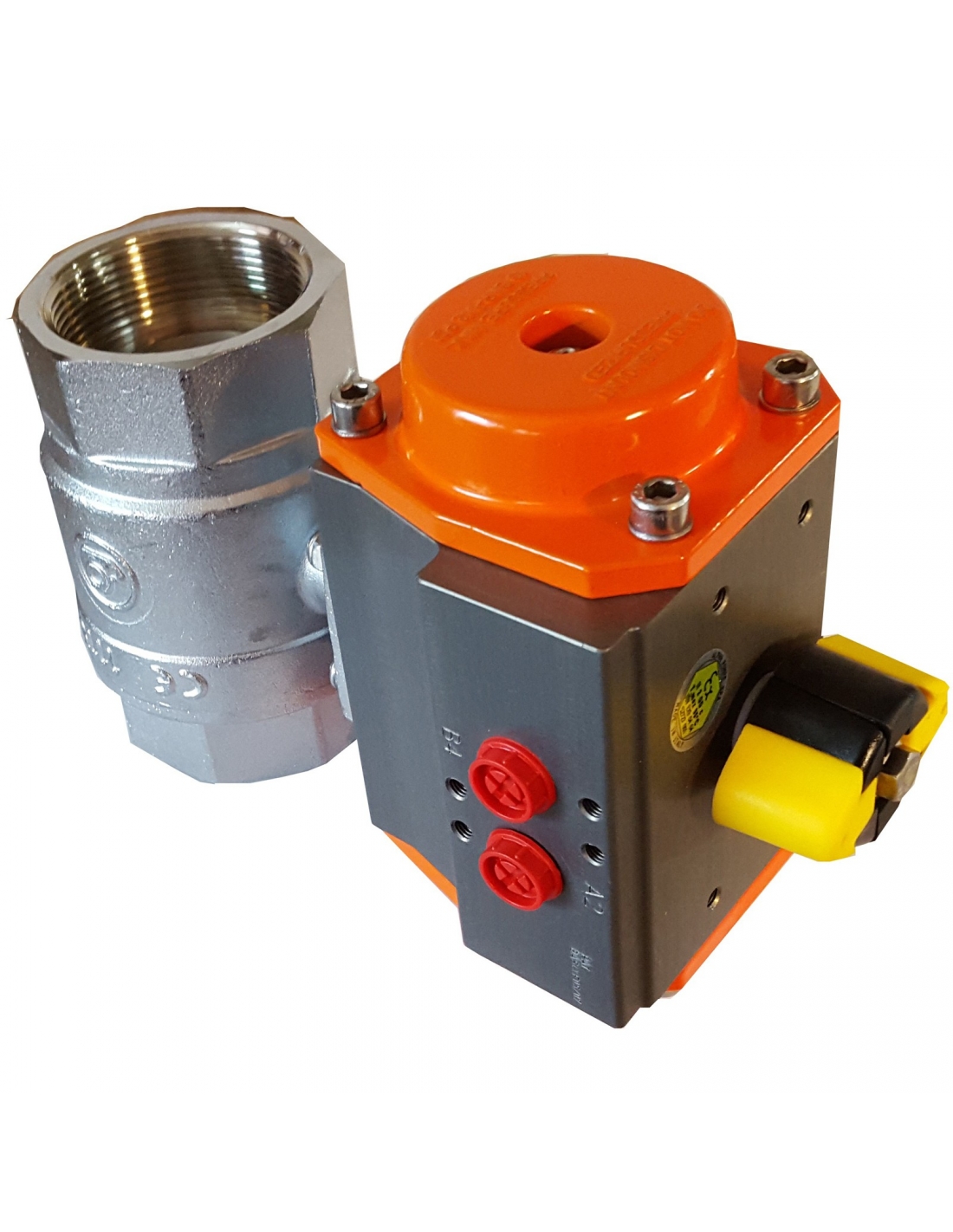

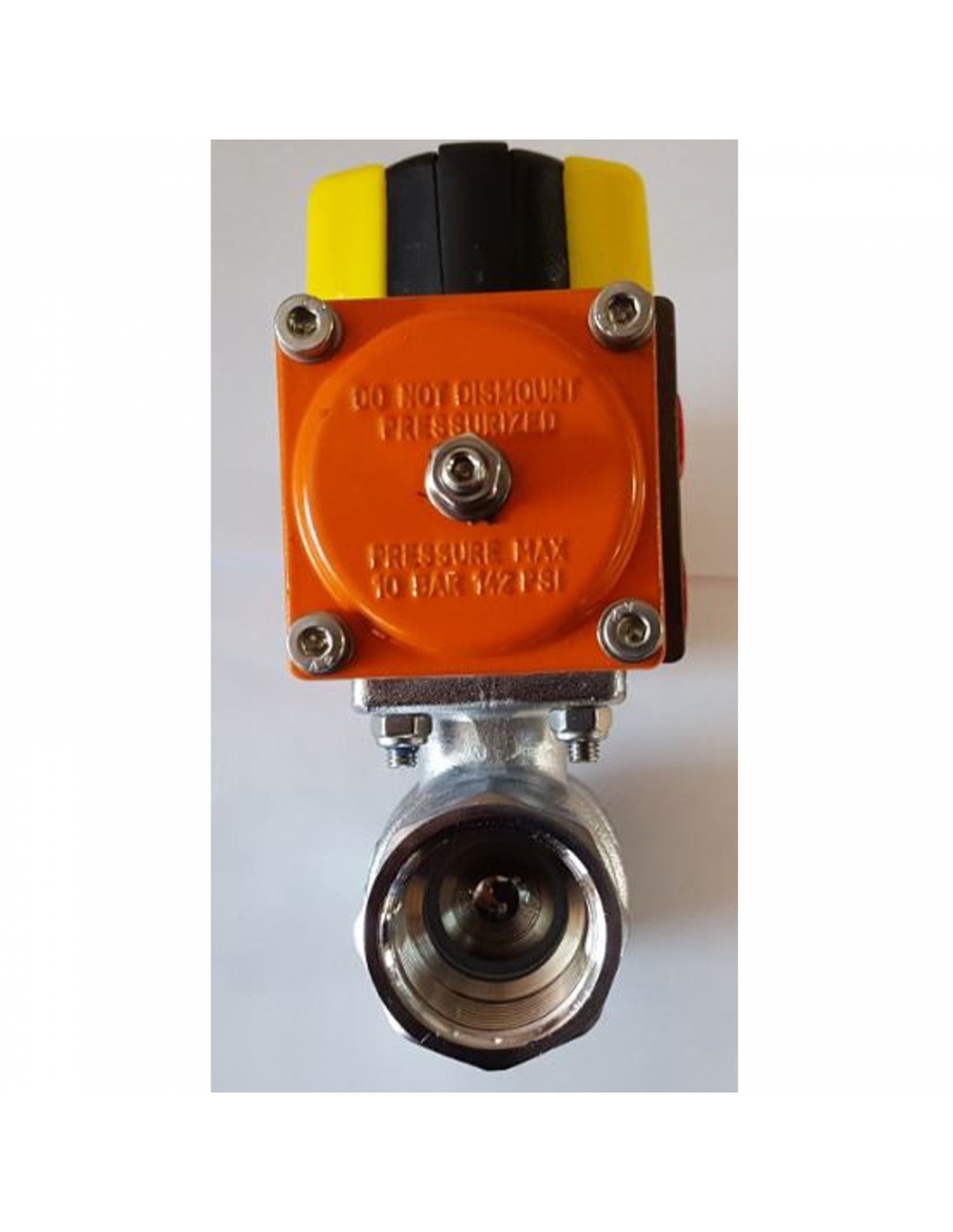

3/4" dial valve, made of stainless steel, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

Valves with ATEX certification.

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB22IA020042D
Actuator type: Ø42 double pneumatic effect (AP42).
Valve type: 2 ways 2 positions (2/2).
Thread type: G 3/4" female.
Valve body: AISI 316 stainless steel
Dial: Stainless steel
Joints: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador 2 vias acero inoxidable

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.
