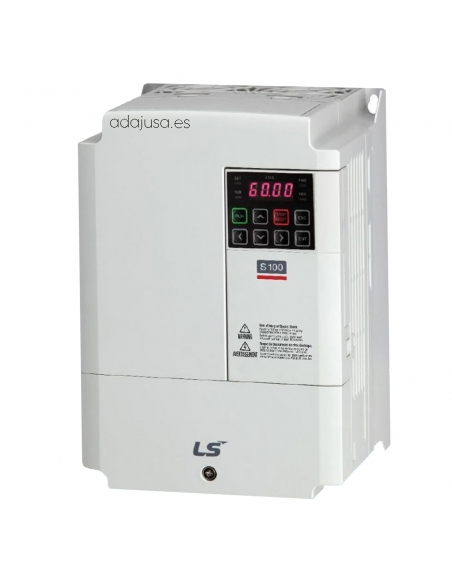

5.5Kw S100 Series Three-Phase Frequency Converter -  LS
5.5Kw S100 Series Three-Phase Frequency Converter -  LS

Three-Phase Frequency Converter 5.5Kw series S100 - LS

€879.36 Tax included

€726.74 tax excl.

400V 5.5Kw (7.5CV) three-phase frequency vector converter, built-in RFI filter and programming panel. Incorporates safe stop entrances (according to machine regulations).

Three-phase frequency converters allow control and speed variation of three-phase standard motors.

Manufacturer: LS ( LS)

Reference: LSLV0055S100-4EOFNA

Logo-Marca-LS Electric

No queries yet, leave the first!


400V 5.5Kw (7.5CV) three-phasecooling converter, integrated RFI filter and programming panel.

Frequency converters (frequency drives) allow control and speed variation of three-phase standard motors. They are only valid to be connected to AC motors.

This frequency converter model already has a built-in RFI filter to avoid electromagnetic interference that could occur with other electrical components.

On the front button, it incorporates all the buttons necessary for motor control and a potentiometer for speed regulation. It can also be controlled from pushbuttons and external potentiometer.

The attachment can be made by screws to the mounting plate or by DIN rail.

The S100 series incorporates "Safe Stop" function inputs, as well as can be used in "constant torque" or "variable pair" mode.

The maximum output frequency of the S100 series converters is 400Hz, a special firmware is available with which you can reach 1000Hz, very useful in machine tool with high turning speeds in the motors. The frequency converter must be requested with this firmware before sending it.

The LS S100 frequency converter series incorporates:

  • You enter the "Safe Stop" function.
  • 5 Programmable speeds with input activation.
  • RS485 communication.
  • Built-in RFI filter.
  • Programming panel integrated in the front.
  • Integrated braking unit.
  • Constant torque and variable pair operation.

Summary of technical specifications:

  • Manufacturer: LS ( LS).
  • Reference: LSLV0055M100-4EOFNA
  • Nominal voltage/frequency: three-phase 380 to 480Vac - 50/60Hz.
  • Motor max constant torque (Kw): 5.5 (7.5CV).
  • Max variable torque motor power (Kw): 10 (11CV).
  • Three-phase current of rated output constant torque (A): 12.
  • Three-phase current of nominal output variable torque (A): 16.
  • Nominal frequency (Hz): 1.0 to 400 (sensorless vector 0 to 120). With special firmware 1000Hz.
  • Nominal input current, heavy duty (A): 12.9.
  • Nominal input current, normal service (A): 17.5.
  • RFI Filter: Built-in.
  • Frequency tolerance +/- 5%.
  • Control system: SPWM (Sine modulation by pulse width. frec: 1Khz-15Khz.
  • Torque Features: Including torque compensation and slip compensation, the starting torque can be 200% to 0.5Hz.
  • Overload capacity: 150% of the rated current for 1 minute.
  • Control method: V/f, slip compensation, sensorless vector.
  • V/f curve: Linear, quadratic, V/f user-defined.
  • Overload Capacity:
    • Constant torque: 150% of the rated current 60 seconds.
    • Variable torque: 120% of the rated current 60 seconds-
  • Lock protection level: Adjustment of 20 to 200% of the rated current.
  • Frequency adjustment: using keys, analog signal or external signals.
  • Start/stop signal: using external keys or signals.
  • Multifunction input signal.
  • Multifunction output indicator.
  • Selectable input signal PNP/NPN.
  • PLC function (Operation in simple sequences).
  • Integrated safety function "Safe torque OFF (STP)". Safe stop.
  • Selectable rotary/stop auto-tuning to optimize engine performance.
  • Torque Reinforcement (Boost): Manual/Automatic.
  • Process control: Advanced PID.
  • DC injection braking.
  • Inputs/outputs: 5 programmable.
  • Analog input: 0..10Vdc/4-20mA.
  • History of failures.
  • Pc monitoring and parameterization.
  • Protection: Self-diagnosis, overvoltage, overcurrent, low voltage, overload, overheating, external failure, electronic thermal current.
  • Cooling: forced ventilation.
  • Dimensions: Height 232mm x Width 160mm x Depth 140mm
  • Degree of protection: IP20

Other powers or specifications consult.
