Monoblock emergency pushbutton EMS twist release - ADAJUSA
Monoblock emergency pushbutton EMS twist release - ADAJUSA

Emergency pushbutton monoblock twist-lock release - EMS

€4.95 Tax included

€4.09 tax excl.

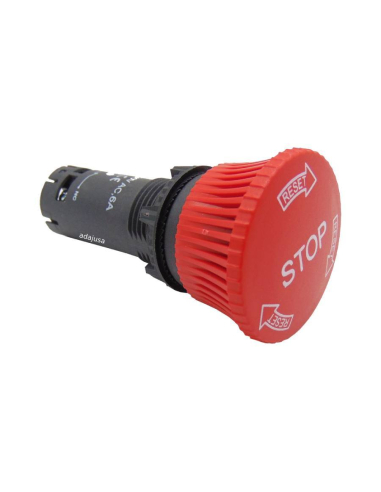

Monoblock emergency push button diameter 30mm, with interlocking and unlocking by turning. STOP marking. Diameter of the fixing hole 20,2mm. Different models with closed contact (1NC), open and closed contact (1NO+1NC), 2 closed contacts (2NC).

Product manufactured in Europe.

Product reference: ME01xRS0





Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Type of contact
  • 2 Closed (2NC)

No queries yet, leave the first!
Privacy
Shipments
Returns


Monoblock emergency pushbutton 30mm dia, with interlocking and unlocking by turning. Marked with the word STOP. Diameter of the hole for fixing 20,2mm. European manufactured product.

Different models available:

  • 1 closed contact (1NC)
  • 1 open contact and 1 closed contact (1NO+1NC)
  • 2 closed contacts (2NC)



Characteristics:

  • Manufacturer: EMS
  • Part number: ME01xRS0
  • Maximum rated voltage: 230Vac
  • Thermal current: 10A
  • Maximum rated current at 24Vac: 1,5A
  • Maximum rated current at 120Vac: 6A
  • Maximum rated current at 120Vac: 6A
  • Frequency: 50-60Hz
  • Nominal voltage of isolation: 600Vac
  • Resistance of isolation at 500Vdc: 50Mohms
  • Contact resistance: 20Mohms
  • Contact electrical life: 500,000 cycles
  • Terminals: Suitable for flexible or solid conductors from 2x1mm2 to 2x2.5mm2
  • Contact material: AgNi
  • Cable connection type: Screw
  • Tightening torque: 0.8Nm
  • Degree of protection: IP65
  • Usage category: AC-15, DC-13
  • Standard: IEC-60947-5-1
  • Certifications: CE, ROHS, UL



Contact arrangement:




Dimensions and mounting:






Material for professional use, install in compliance with the regulations in force at the place of installation
