Valve manual lever 1/8 5/3 centers escape...

Valve manual lever 1/8 5/3 centers escape return spring lever 90 degrees - Metal Work

Name: Valve manual lever 1/8 5/3 centers escape return spring lever 90 degrees - Metal Work
Brand: Metal Work
SKU: 7010000900
Price: 52.4966 EUR
Availability: PreOrder

€52.50 Tax included

€43.03 tax excl.

1/8 valve manual lever drive. 5-way 3 positions, exhaust centers, spring return, the valve is actuated when the lever is operated and returns to the resting position when the lever stops actuated, metal body. For dual-effect cylinder control.

Reference: 7010000900

Logotipo Metal Work

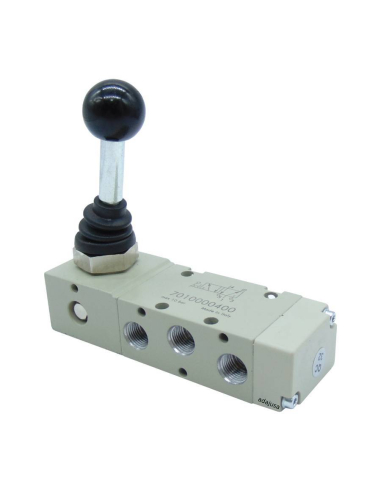

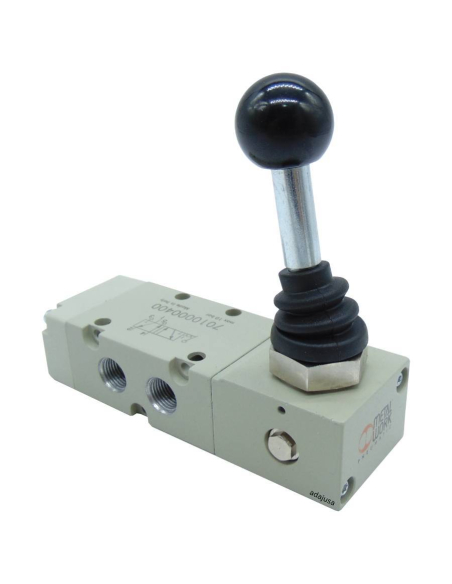

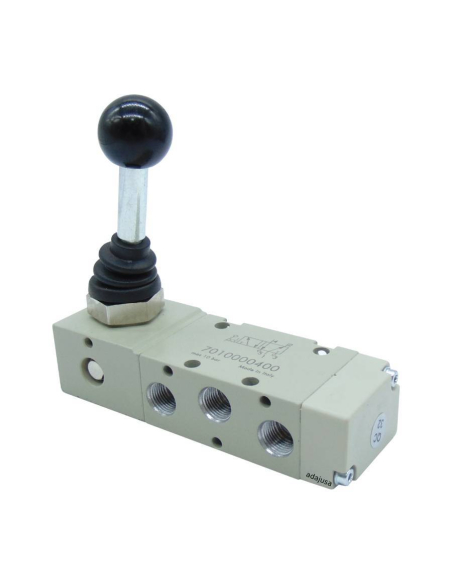

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/8 manual lever drive valve with 3 positions, exhaust centers, spring return, the valve is actuated when the lever is operated and returns to the resting position when the lever stops operating, for double-acting cylinder control, the valve has 3 positions, in one of them the cylinder advances, in the central, the cylinder stops but maintains pressure (force) not letting the air present in its outlets escape, and in the other position the cylinder is collected.

It can also be used as a pass-through or cutting valve and general purpose

Technical details:

Manufacturer: Metal Work.
Reference: MAV 26 LES OC.
Code: 7010000900.
Fluid: Pressure or vacuum air, with or without lubrication.
Valve body: aluminum.
Sliding material: Nickel-plated aluminium.
Gaskets: NBR.
Number of tracks: 5.
Size: 1/8".
Positions: 3 centers in escape, return by spring.
Command: By lever.
Working pressure: Empty÷10 bar.
Temperature: -10÷60oC.
Nominal diameter: 5mm.
Flow rate at 6bar &DELTA; P 0.5bar: 400 Nl/min.
Flow rate at 6bar &DELTA; Q 1bar: 550 Nl/min.
Installation: in any position.

Dimensiones válvulas 1/8 3 posiciones palanca 90º metal work

Lever valve data sheet

Download (959.43KB)
