ATTENUATOR PROBE SA-061 for oscilloscope (100MHz) - PROMAX
ATTENUATOR PROBE SA-061 for oscilloscope (100MHz) - PROMAX

ATTENUATOR PROBE SA-061 for oscilloscope (100MHz) - PROMAX

Material on request
€39.01 Tax included

€32.24 tax excl.

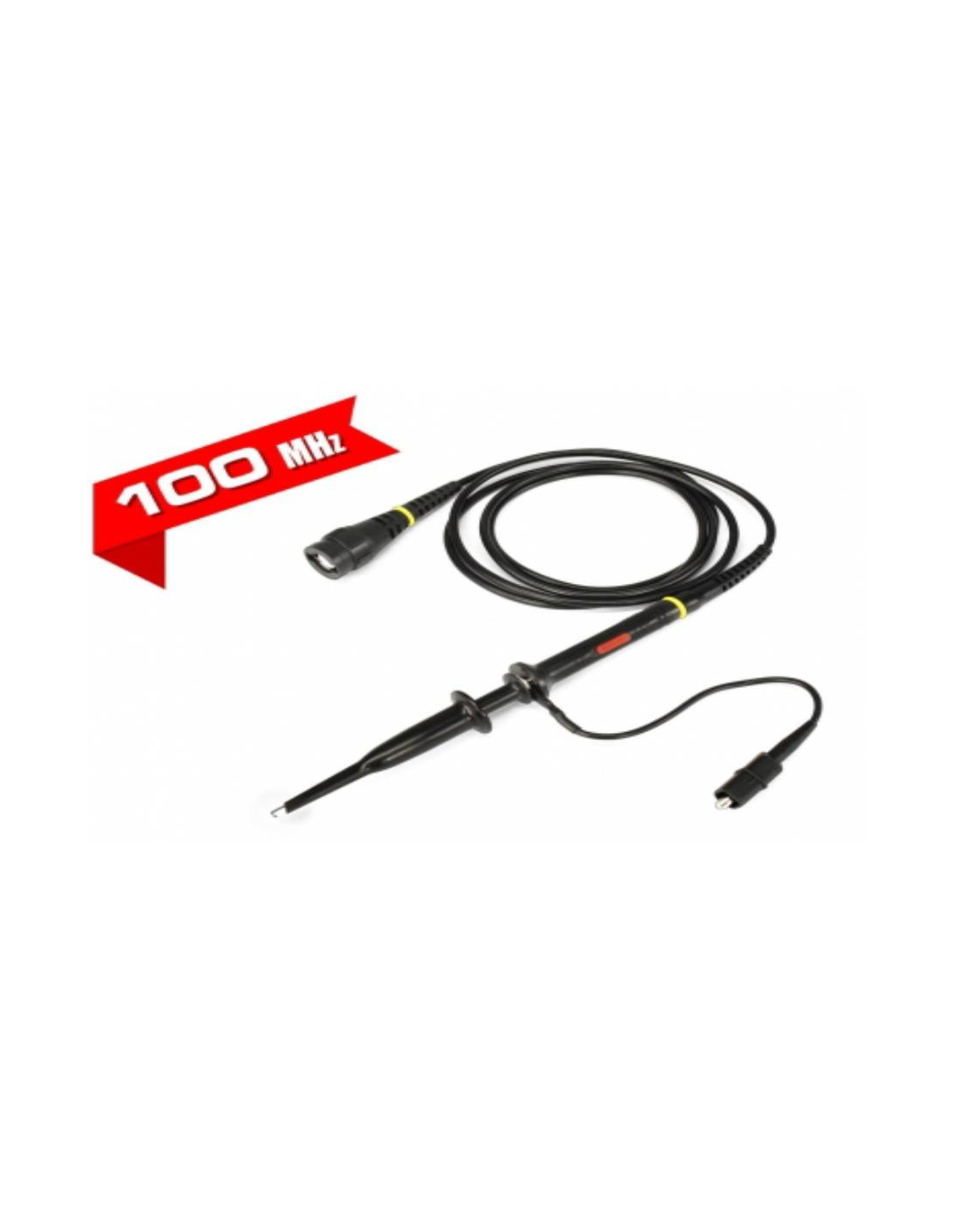

100 MHz attenuating probe certified for PROMAX oscilloscopes with x1 and x10 attenuation factor.

Reference: SA-061



No queries yet, leave the first!


Modular attenuating probes for PROMAX oscilloscopes are included as standard in the oscilloscopes in the catalogue and are also available as optional accessories. The activation of the attenuator (x1 or x10) is done by means of an easily accessible switch in the body of the probe.

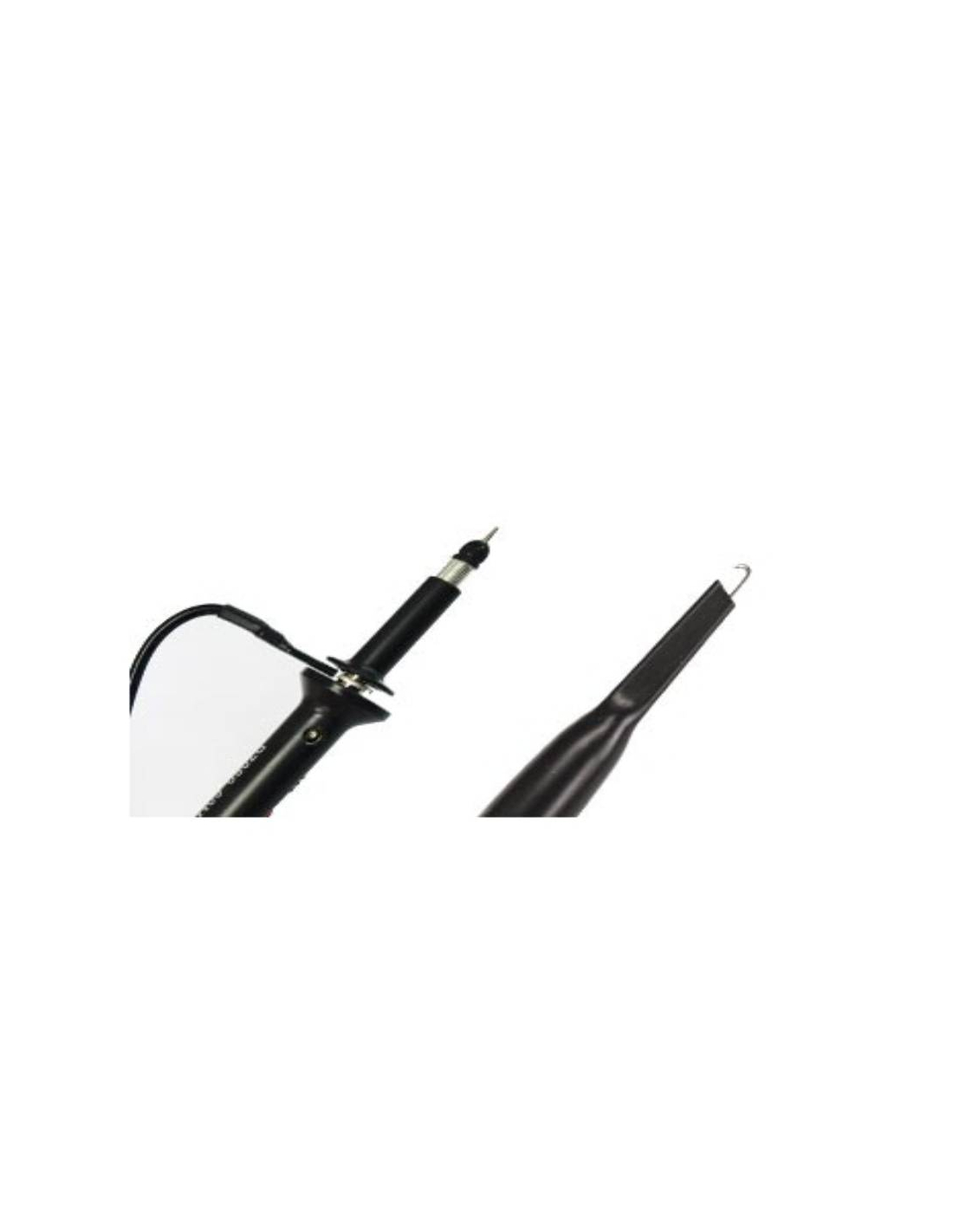

They are connected to the oscilloscope with the BNC terminal and to the circuit under test with a shrink hook. They allow to adjust the low frequency compensation using the reference signal of the oscilloscope.

Attenuating probes include replacement springs and interchangeable color rings for easy identification by the user.

Brand/Supplier: PROMAX
Reference: SA-061


Specs:

  • Attenuation: x1, x10
  • Maximum bandwidth: 100MHz
  • Input resistance: x1 1 MΩ ±2% / x10 10 MΩ ±2%
  • Maximum input voltage: 600V
  • Approximate weight: 55gr
  • Cable length (approximate): 120cm
