Roller chain sprockets 5/8 x 3/8 10B-1 Z8 DIN8187 - ISO R606

€4.09 Tax included

3.35 tax excl.

P583810B1Z8

Single pinion for single roller chain model 10B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z8 5/8

Teeth: 8

ISO: 10B-1

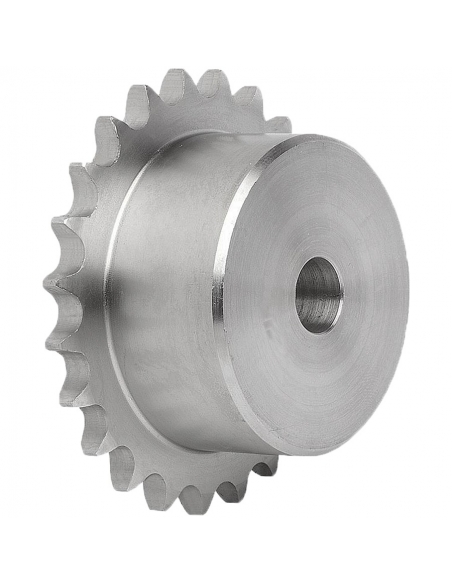

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 10B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z8 1/28


Characteristics:

  • 5/8 x 3/8 mm ISO 10B-1
  • 15.875 x 9.65 mm
  • Teeth: 8
  • Roller diameter: 10.16 mm
  • Tooth radius (r): 16 mm
  • Curved area width (C): 1.6 mm
  • Tooth width (h1): 9.1 mm
  • Outer Diameter (Sd): 47.0
  • Primitive diameter (Dp): 41.48
  • Center diameter (d): 25
  • Hub diameter (D): 10 (Non-mechanical shaft diameter)
  • Width (H): 25


Material for professional use, install in compliance with the regulations in force at the place of installation.
