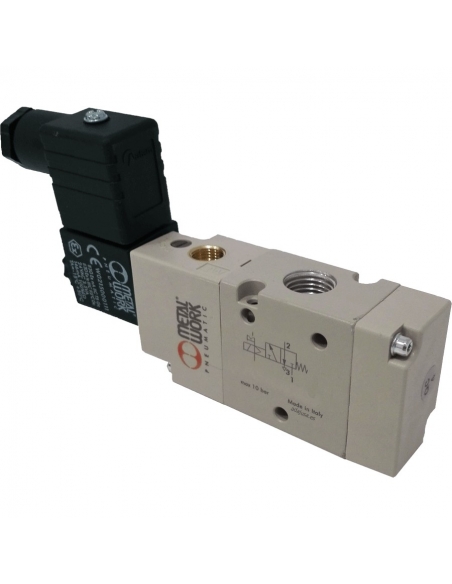

1/8 3-way monostable assisted solenoid valve 230Vac - Metal Work - ADAJUSA

Solenoid valve 1/8 3-way monostable assisted 230Vac - Metal Work

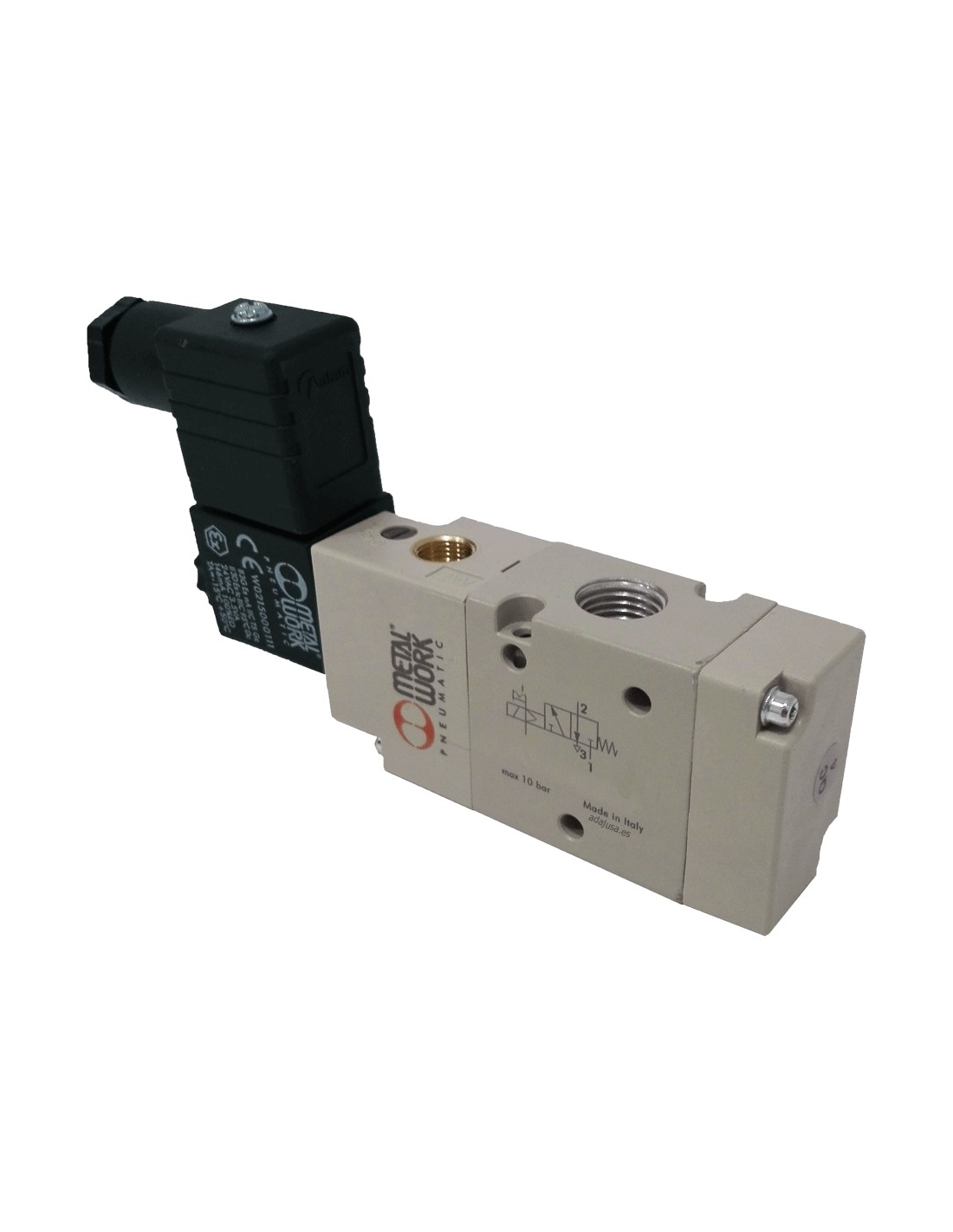

Name: Solenoid valve 1/8 3-way monostable assisted 230Vac - Metal Work
Brand: Metal Work
SKU: PK-120500230
Price: 72.651 EUR
Availability: PreOrder

€72.65 Tax included

€59.55 tax excl.

Electrovalve 1/8 3-way assisted monoset normally closed (NC), with coil at 230Vac and connector 22 mm

simbolo electrovalvula neumatica 3 vias

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

€9.35

Solenoid valve connector size 22 - Metal Work

€1.53

Electrovalve 1/8 3-way assisted monostable - Metal Work - ADAJUSA

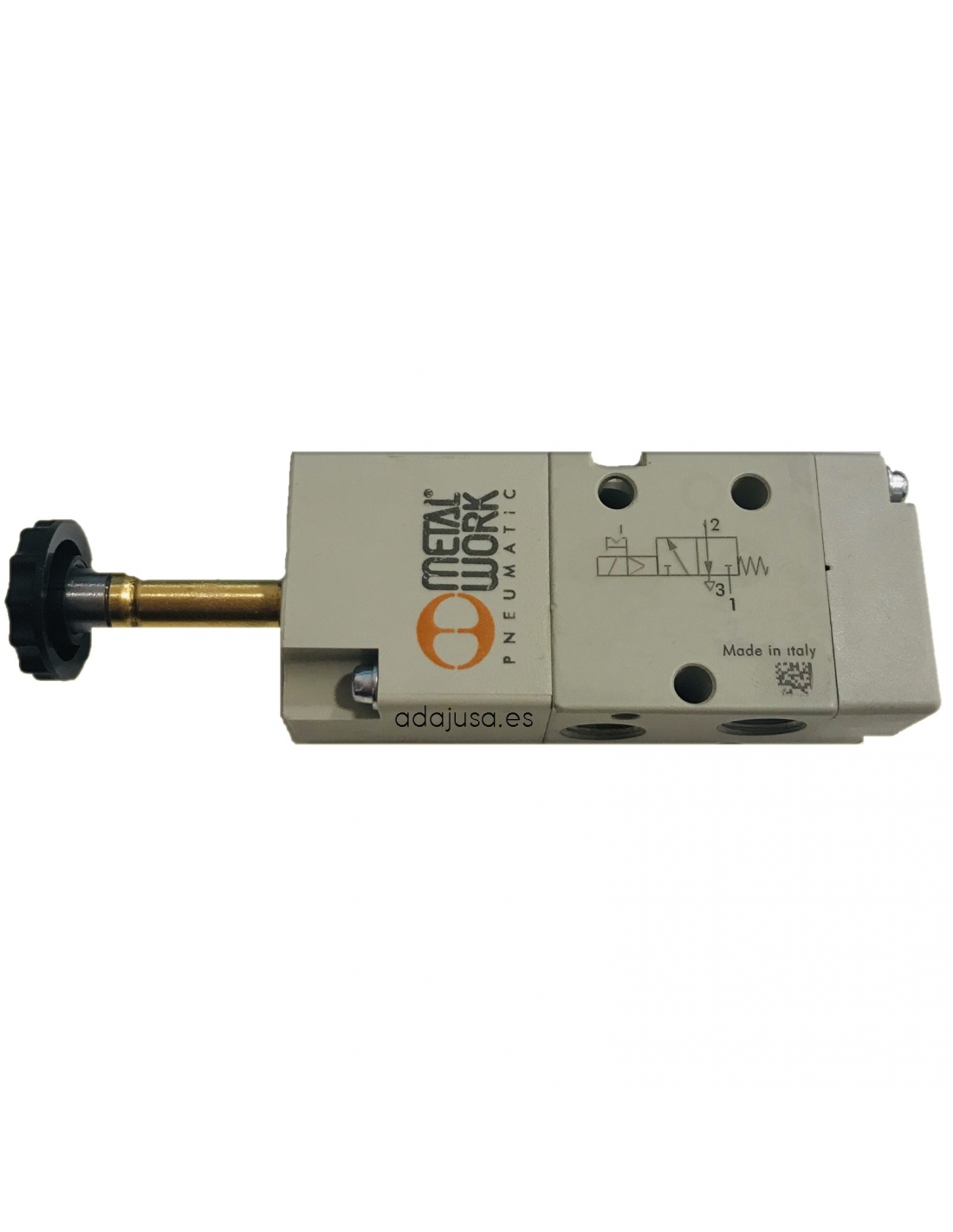

Solenoid valve 1/8 3-way monostable assisted without coil - Metal Work

€61.78

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valve 1/8 3 ways monostable assisted, normally closed NC with 230Vac coil. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

Components included:

Solenoid valve 1/8 3/2 - monostable NC.
Coil 230 Vac 3.5 VA
Connector size 22

Features:

Manufacturer: Metal Work
Solenoid valve reference: 7010020500 - SOV23SESNC
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 5 mm
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
Bistable TRA/TRR at 6 bar ms: 20/20
Voltage: 220 - 240 Vac
Power: 3.5 VA
Voltage tolerances %: -10 ÷ +15

Dimensiones electrovalvula 1/8-3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
