Solenoid valve 1/8 5/3 monostable centers...
Solenoid valve 1/8 5/3 monostable centers pressure - Aignep

Solenoid valve 1/8 5/3 monostable centers pressure - Aignep

€72.81 Tax included

€60.17 tax excl.

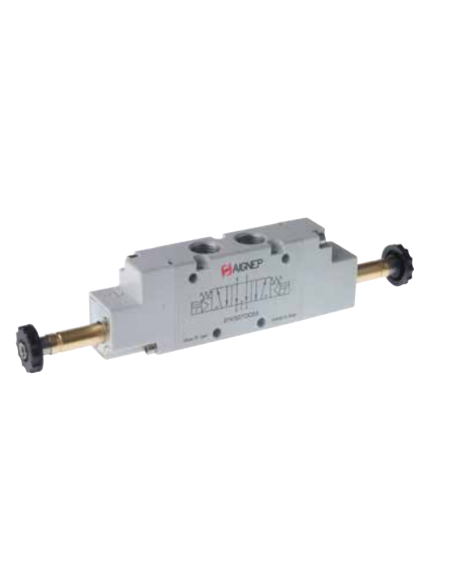

Solenoid valve 1/8 5 ways 3 positions monostable, pressure centers, with G1/8" threads, anodized aluminum body, NBR seals.

Reference: 01VS07PC02
Esquema neumatico electrovalvula 5 vias centros presion adajusa
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!


Pneumatic solenoid valve 1/8, 5 ways, 3 positions, pressure centers, monostable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coil and connector not included in the supply.

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS07PC02
  • Type of threads: G 1/8"
  • Monostable bar: 2 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Class of isolation: F 155
  • Fluid: Filtered air without lubrication
  • Number of ways: 5
  • Positions: 3 - centers in pressure
  • Operation: monostable
  • Seal material: NBR
Dimensiones electrovalvulas 1_8 5 vias biestable Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
