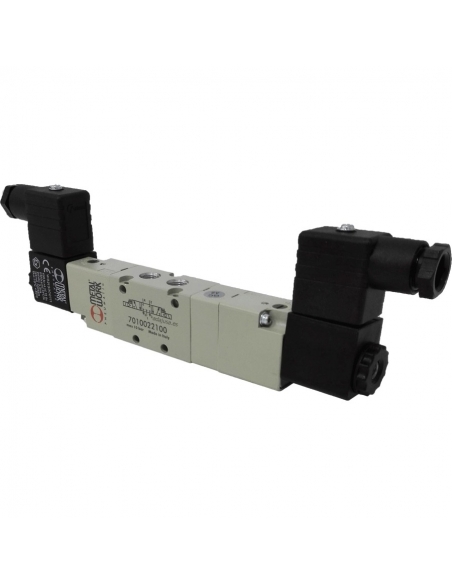

Solenoid valve 1/8 5 ways 3 positions closed centers 24Vdc 2 W - Metal Work

Solenoid valves of 1/8" of 5 ways and 3 positions, closed centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, with which the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder is collected.

The supply includes:

• 1 solenoid valve 1/8" 5 /3 closed center
• 2 coils 24Vdc 2 W
• 2 connectors 22 m

Specifications:

• Solenoid valve manufacturer: Metal Work.
• Solenoid valve reference: 7010022100 - SOV 26 SOS DC
• Solenoid valve working pressure: 2.5 to 10 bar.
• Coil voltage 24Vdc
• Consumption: 2 W
• Minimum working pressure: 2.5 bar.
• Working temperature: -10ºC to 60ºC.
• Nominal diameter: 5mm.
• Flow at 6 bars Δp 1 bar: 550 Nl/min.
• Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
