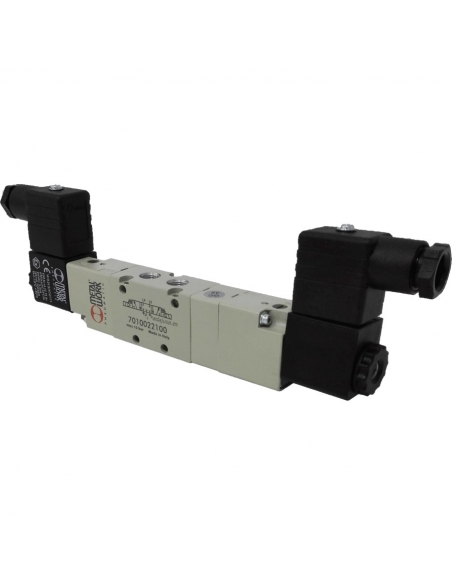

Solenoid valve 1/8 5 ways 3 positions closed centers 24Vac - Metal Work - ADAJUSA

24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work

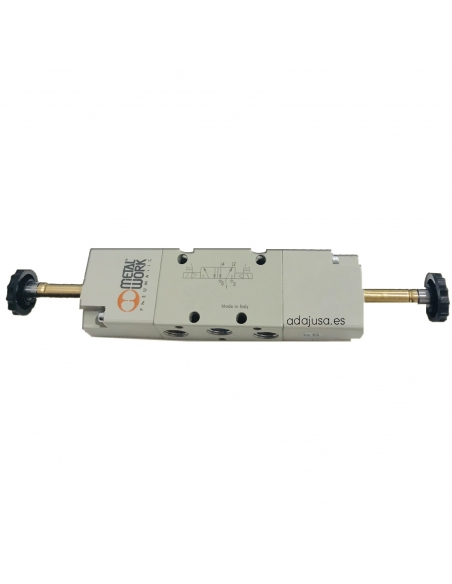

Solenoid valve 1/8 5-way 3 positions closed centers - Metal Work

Solenoid valve 1/8 5 vias 3 positions 24Vac 3.5VA closed centers - Metal Work

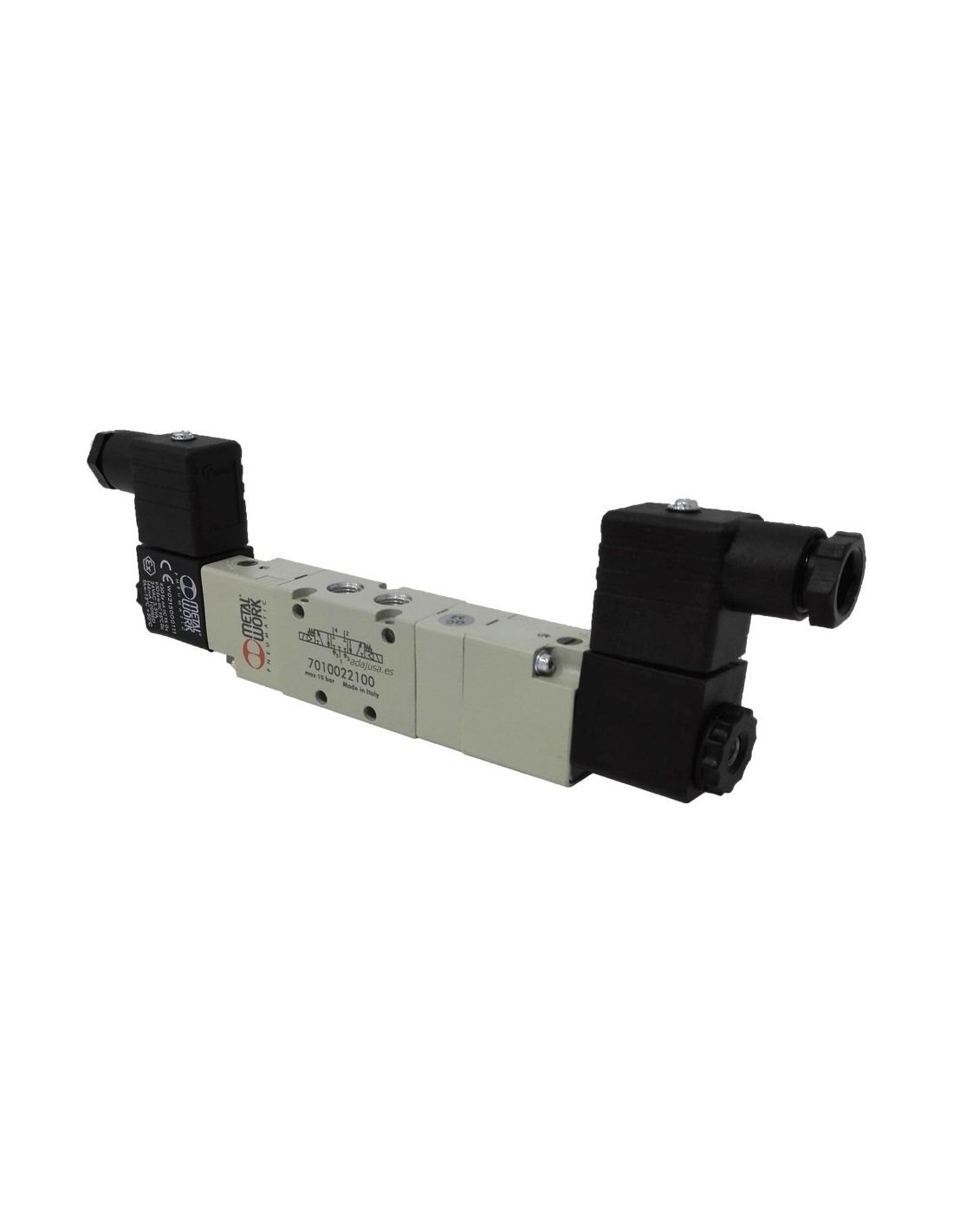

Name: Solenoid valve 1/8 5 vias 3 positions 24Vac 3.5VA closed centers - Metal Work
Brand: Metal Work
SKU: PK-E1853C24A
Price: 127.8438 EUR
Availability: PreOrder

€127.84 Tax included

€104.79 tax excl.

1/8" 5-way, 3-position solenoid valves, closed centers, metal body, for pneumatic applications for industrial or general use.
Coil for solenoid valve size 22mm, voltage 24VAC,with a consumption of 3.5VA, for cores of 8mm. Connector 22 mm

Esquema neumático electroválvula 5 vías 3 posciones centros cerrados

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.53

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€9.35

Solenoid valve 1/8 5-way 3 positions closed centres - Metal Work - ADAJUSA

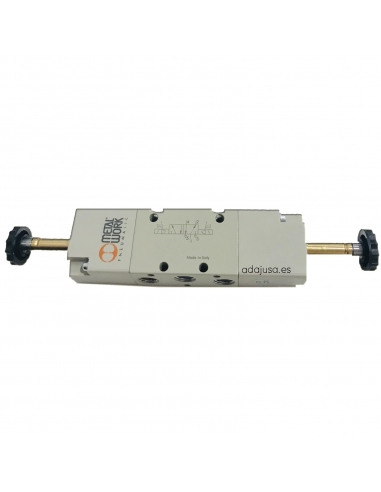

Solenoid valve 1/8 5-way 3 positions closed centers - Metal Work

€106.10

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valves of 1/8" of 5 ways and 3 positions, closed centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, with which the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder is collected.

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm.
22 mm plastic connector

The supply includes:

1 solenoid valve 1/8" 5/3 closed centers
2 coils 24Vca 3.5VA
2 connectors 22 m

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7010022100 - SOV 26 SOS DC
Solenoid valve working pressure: 2.5 to 10 bar.
Coil voltage 24Vca
Consumption: 3.5 VA
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.
Manual drive: Yes.

Dimensiones electroválvula 1/8 5/3 Metal Work
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
