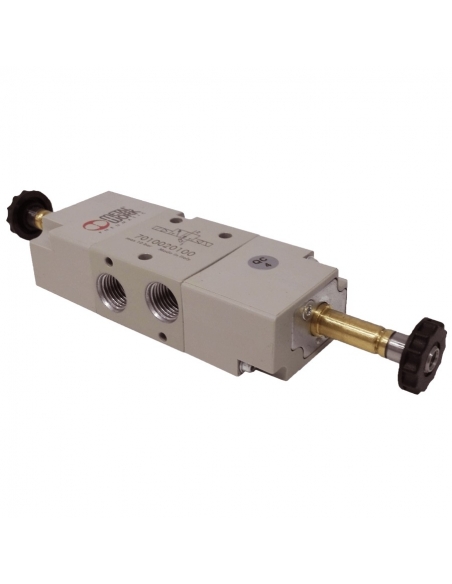

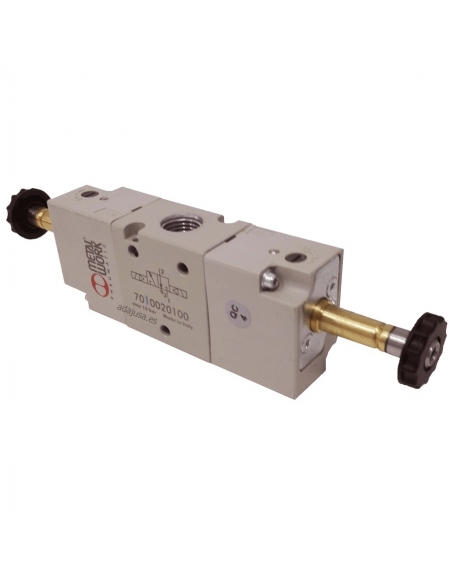

1/8 3-way bistable electrovalve - Metal Work - ADAJUSA

Solenoid valve 1/8 3-way bistable - Metal Work

Name: Solenoid valve 1/8 3-way bistable - Metal Work
Brand: Metal Work
SKU: 7010020100
Price: 87.9132 EUR
Availability: InStock

€87.91 Tax included

€72.06 tax excl.

Solenoid valves 1/8" 3 ways and 2 positions, for pneumatic applications for industrial or general use. Coil and connector not included.

Part number: 7010020100

Esquema neumático electroválvula 3 vías biestable

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valves of 1/8", 3 ways and 2 positions, for pneumatic applications of industrial or general use. High flow rate and very high reliability and durability.

Coils and connectors not included.

Technical characteristics:

Manufacturer of the solenoid valve : Metal work.
Reference of the solenoid valve : 7010020100 - SOV23SOBOO
Working pressure of the solenoid valve : 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow rate at 6 bar Δp 1 bar: 550 Nl/min.
Manual operation: Yes.

Dimensiones electroválvula neumática 3 vias 2 posiciones Metal Work

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
