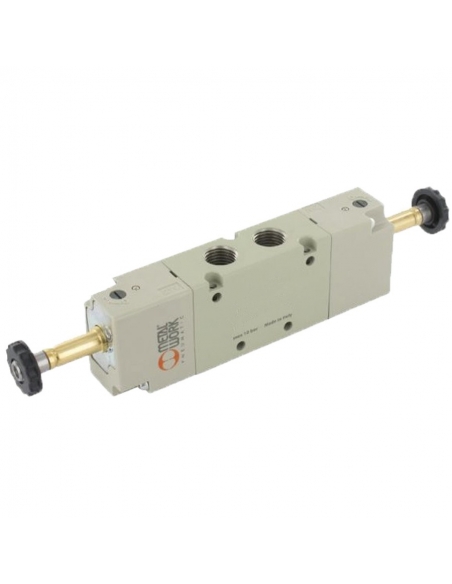

Double solenoid valve 1/8 3/2 ways 24Vca NO - Metal Work

Double pneumatic solenoid valve 1/8" 3/2 way NO. The solenoid valve is normally open, i.e. without voltage on the coil, the fluid or air will pass through the solenoid valve , when the coil is energized the passage of fluid or air will be interrupted.

With plastic connectors size 22 and coils 24 Vac 3,5 VA

The supply includes:

• Double solenoid valve 1/8" 3/2 NO
• 2 Coils 24 Vac 3,5VA
• 2 Connectors

Technical characteristics:

• Manufacturer Metal Work
• Part number: Metal Work: SOV 28 SOS NO Code: 7010023200
• Type of threads: G 1/8"
• Bistable bar: 2.5 ÷ 10
• Minimum assistance pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min - bar: 121,43
• Critical ratio b bar/bar: 0,32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Class of isolation: F 155
• Rated voltage: 24Vac.
• Rated power: 3,5VA.

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
