Double solenoid valve 1/8 3/2 way 24Vcc NO - Metal Work

€120.08 Tax included

€98.43 tax excl.

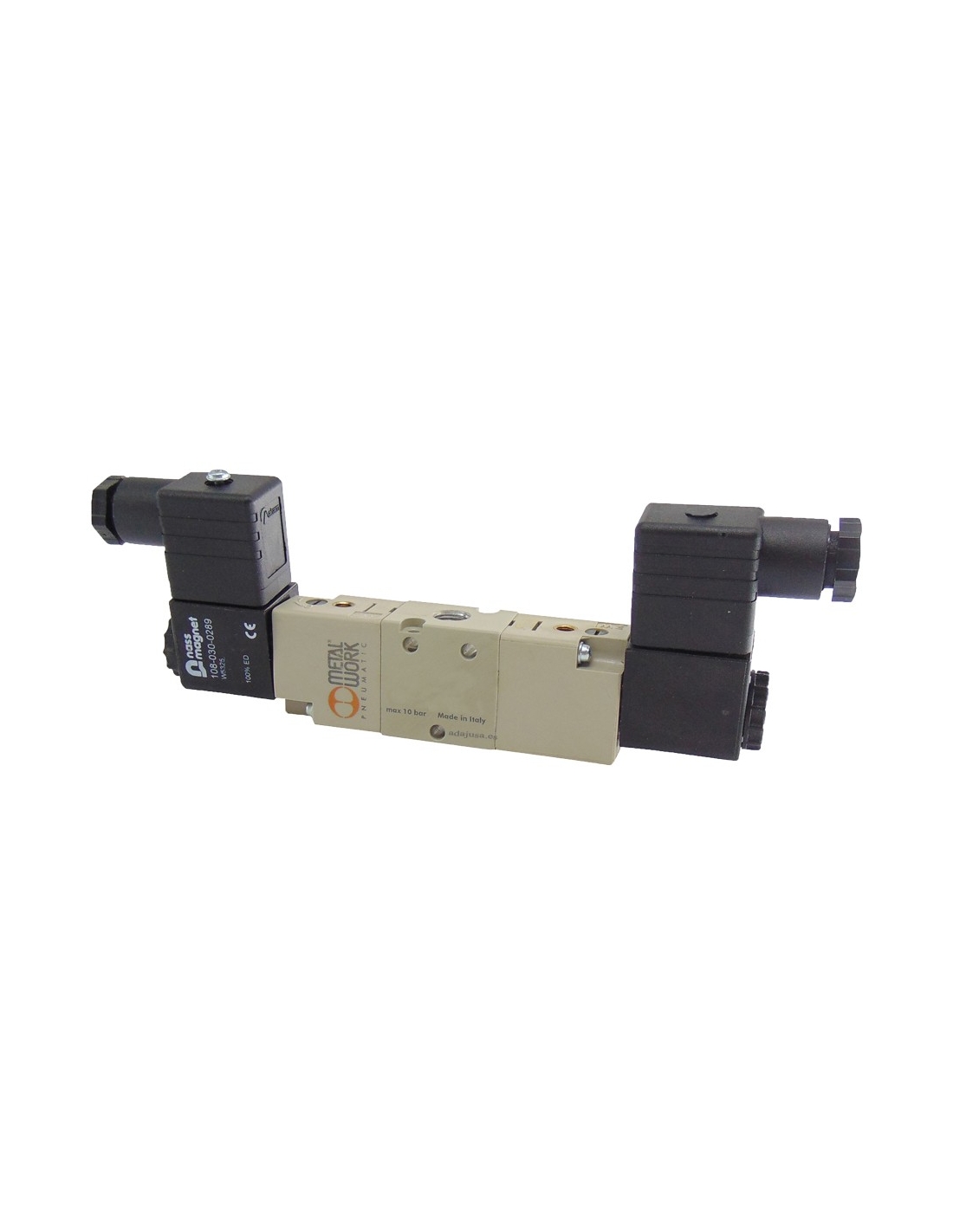

Solenoid valve 1/8 3/2 way double output NO (normally open). With 24 Vdc connectors and coils


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Doublepneumatic solenoid valve 1/8" 3/2 way NO. The solenoid valve is normally open, that is to say, without tension on the coil, the fluid or air will pass through the solenoid valve , when the coil is put in tension the passage of the fluid or air will be interrupted.

With plastic connectors size 22 and coils 24 Vdc 2W

The supply includes:

  • Double solenoid valve 1/8" 3/2 NO
  • 2 Coils 24 Vdc 2W
  • 2 Connectors

Technical characteristics:

  • Manufacturer Metal Work
  • Part number: Metal Work: SOV 28 SOS NO Code: 7010023200
  • Type of threads: G 1/8"
  • Bistable bar: 2.5 ÷ 10
  • Minimum assistance pressure bar: 2.5
  • Working temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min - bar: 121,43
  • Critical ratio b bar/bar: 0,32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • TRA/TRR monostable at 6 bar ms: 15/35
  • TRA/TRR bistable at 6 bar ms: 20/20
  • Voltage tolerances %: -10 ÷ +15
  • Class of isolation: F 155
  • Rated voltage: 24Vdc.
  • Rated power: 2W.


Equipment for professional use, install in compliance with the regulations in force at the place of installation.
