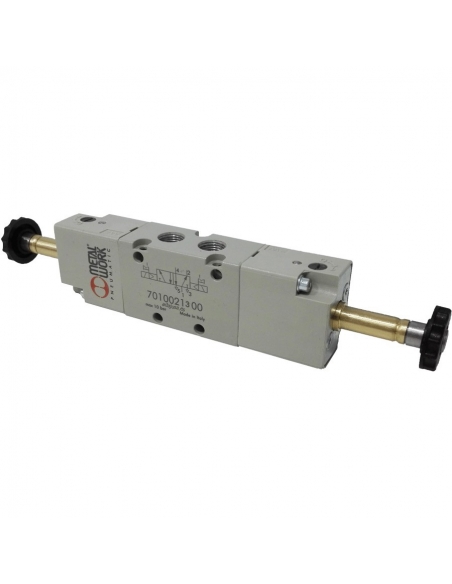

Solenoid valve 1/8 5 ways bistable differential 230 Vac - Metal Work

Pneumatic solenoid valve of 1/8 5 ways bistable differential relocation with 22 mm connectors and 230Vca coils.

The supply includes:

• Solenoid valve 1/8 5 ways differential bistable
• 2 x 22 mm connectors
• 2 coils 230Vca - 3.5VA

Specifications:

• Manufacturer: Metal Work
• Thread type: G 1/8"
• Bistable bar: 1 ÷ 10
• Minimum assist pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min · bar: 121,43
• Critical bar/bar ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• Monostable TRA/TRR at 6 bar ms: 15/35
• Bistable TRA/TRR at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Insulation class: F 155
• Voltage: 230Vca
• Rated power: 3.5VA.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
