Name: Solenoid valve 1/8 5 ways bistable differential 24 Vdc - Metal Work
Brand: Metal Work
SKU: PK-E185DIF24C
Price: 113.7894 EUR
Availability: InStock

€113.79 Tax included

€93.27 tax excl.

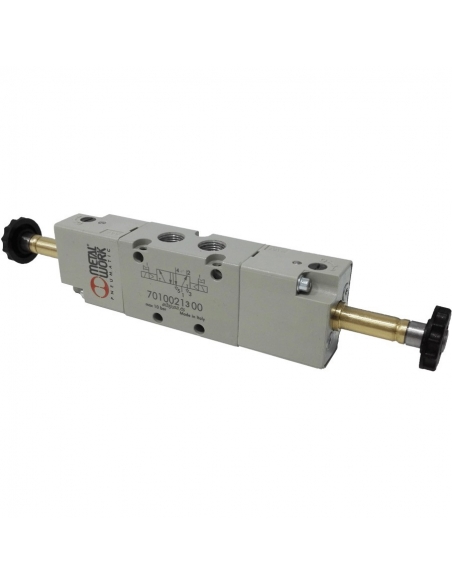

Solenoid valve 1/8 5 ways bistable differential with connectors and coils voltage 24 Vdc

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.53

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€9.35

Solenoid valve 1/8 5 ways bistable differential - Metal Work

€92.05

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 1/8 5 ways bistable differential relocation with 22 mm connectors and 24Vdc coils.

The supply includes:

Solenoid valve 1/8 5 ways differential bistable
2 x 22 mm connectors
2 coils 24Vdc - 2W

Specifications:

Manufacturer: Metal Work
Thread type: G 1/8"
Bistable bar: 1 ÷ 10
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121,43
Critical bar/bar ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
Bistable TRA/TRR at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Insulation class: F 155
Voltage: 24Vdc
Rated power: 2W

electrovalvula 1/8-5/2 biestable metal work
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
