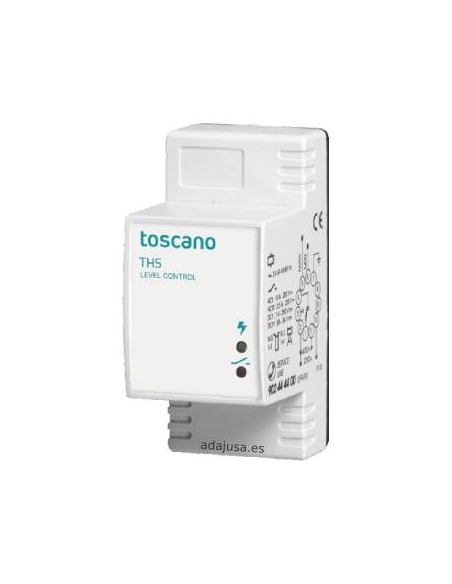

Fluid (water) level control relay of probes by conductive system. This level control relay allows the control of the water level in a well or in a reservoir. Adjustable sensitivity and dual voltage operation, the same relay can operate at 12Vdc or 24Vdc. The connection is made through an undecal base (not included in the supply), this facilitates assembly and subsequent maintenance. By having a sensitivity control, this relay is suitable for situations where there are particular circumstances (high humidity, considerable distance between probes and equipment, ground capacity of the probe cable), in these cases, it is necessary to be able to reduce the sensitivity to avoid false activations of the relay.
It has a connection for 2 probes, maximum and minimum level.
Connection:
Note: The supply does not include either the probes or the undecal base, only the relay.
Technical specifications:
- Manufacturer: Toscano
- Reference: TH5-12/24
- Working voltage: 12-24VDC – 50/60 Hz
- Power consumed: 2VA
- Permissible voltage variations: +10%-20%
- Response sensitivity: 30 Kohm
- Probe voltage: 12V AC 50 Hz
- Probe intensity: 1.2 mA max. in short circuit
- Temperature range: -10º +60º C
- Approximate average weight: 140 gr
Dimensions:
To expand the information, you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, must be installed by qualified personnel respecting the regulations in force at the site of installation.
