Pack

24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work

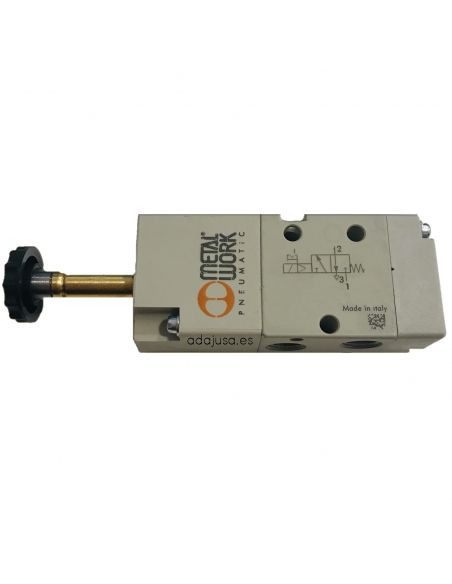

1/4 3-way monostable electrovalve assisted without coil - Metal Work - adajusa.es

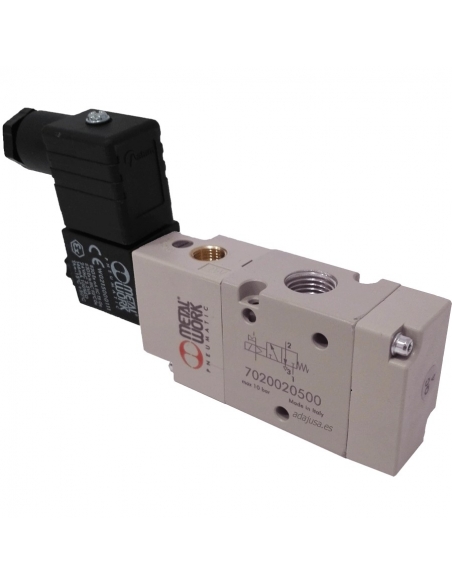

solenoid valve 1/4 3 ways monostable assisted 110VAC 3.5VA - Metal Work - ADAJUSA

Solenoid valve 1/4 3-way monostable assisted 110Vac 3.5W - Metal Work

Name: Solenoid valve 1/4 3-way monostable assisted 110Vac 3.5W - Metal Work
Brand: Metal Work
SKU: PK-E143MA110
Price: 80.2272 EUR
Availability: PreOrder

€80.23 Tax included

€65.76 tax excl.

1/4" 3-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm. 22mm connector

Esquema electrovalvula 3 vias asistida

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.50

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€9.19

Solenoid valve 1/4 3 ways monostable assisted - Metal Work - ADAJUSA

Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work

€69.54

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 3-way monostable assisted, normally closed (NC) pneumatic solenoid valve for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core.

Made of aluminum, compact size and high airflow, short response time.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm.

Electric connector for 22mm size solenoid valve coils, black

This eléctrovalvula, when assisted, needs pressure in the pilot socket, which is independent of the valve sockets, this allows to control fluids with very low pressures and even be used for vacuum applications.

Supply includes:

Solenoid valve 1/4 3 ways monostable assisted
Coil 110Vac 3.5VA
22mm connector

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: 7020020500 - SOV 33 SES NC
Type: 1/4-5/2 Assisted monostable
Thread: G 1/4"
Voltage: 110Vac
Consumption: 3.5VA
Operating pressure: 0 bar÷10 bar
Minimum working pressure for the pilot: 2.5 bar
Working temperature: -10oC ÷ +60oC
Nominal diameter: 5mm.
Capacity at 6 bar P 0.5 bar: 400 Nl/min
Capacity at 6 bar P 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.152kg.
Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
