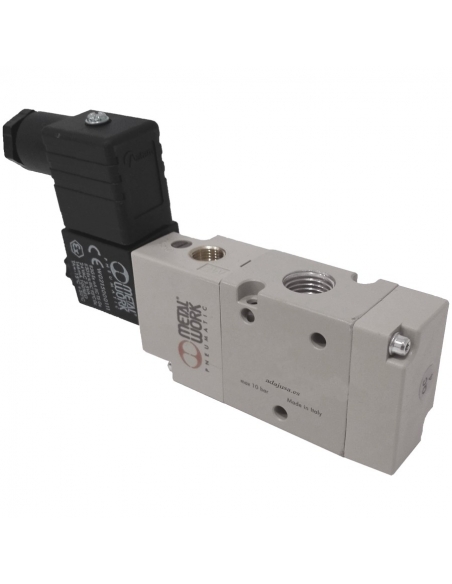

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work

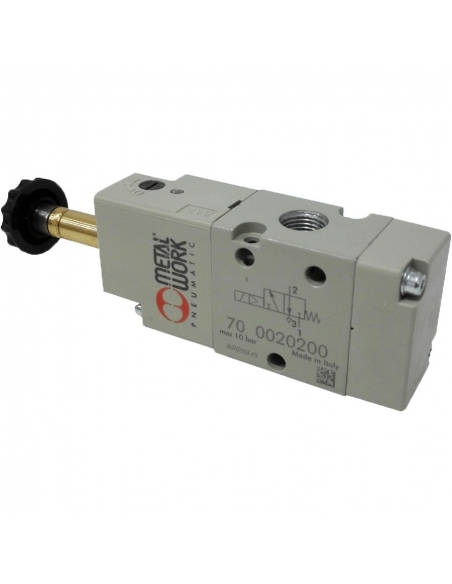

Solenoid valve 3/8 3-way monostable NC - Metal Work - ADAJUSA

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

Solenoid valve 3/8 3-way monostable NC 24 Vdc - Metal Work

Name: Solenoid valve 3/8 3-way monostable NC 24 Vdc - Metal Work
Brand: Metal Work
SKU: PK-383NC24C
Price: 101.76 EUR
Availability: BackOrder

€101.76 Tax included

€83.41 tax excl.

PK-383NC24C

3/8" 5-way monestable, closed (NC) pneumatic solenoid valve for industrial and general use applications. With connector and coil of 24 Vdc

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.51

Coil for solenoid valve 24Vcc Metal Work W0215000101 Price adajusa

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€9.28

Solenoid valve 3/8 3-way monostable NC - Metal Work

€90.96

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 3 ways 2 monostable positions. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

The supply includes:

Valve elector 3/8 3/2 monostable NC
Coil 24Vdc - 2 W
T22 connector

Features:

Provider: Metal Work
Solenoid valve reference: 7040020200- SOV C3 SOS NC
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Coil voltage: 24 Vdc
Power: 2 W
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

Metal Work

W0215000131

€9.28 (€7.61 tax excl.)

Coil for solenoid valve size 22mm, voltage 220-230VAC., with a consumption of 3.5VA, for cores of 8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core. Reference: W0215000131Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Accessories for solenoid valves

Luminous valve connector size 22 with VDR 24V

Metal Work

W0970510015

€7.69 (€6.30 tax excl.)

Connector for solenoid valve with VDR 24 V protector and LED indication. For 22mm coils. Reference: W0970510015Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa

Accessories for solenoid valves

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

Metal Work

W0215000111

€9.28 (€7.61 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm. Valid for solenoid valves with 8mm actuator core.Reference: W0215000111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 3 ways monostable NO - Metal Work

Metal Work

7040020400

€90.96 (€74.56 tax excl.)

3/8" 3/2-way monestable pneumatic solenoid valve, (NO), for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.Reference: 7040020400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted pressure centers - Metal Work

Metal Work

7040022600

€145.75 (€119.47 tax excl.)

Solenoid valves of 1/8" of 5 ways and 3 positions assisted,centers in pressure, metal body, for pneumatic applications of industrial or general use. Reference: 7040022600 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrical connector solenoid valve size 22 CON0100001 Aignep: ADAJUSA : price

Accessories for solenoid valves

Connector solenoid valve size 22 - Aignep

Aignep

CON0100001

€1.51 (€1.24 tax excl.)

Electrical connector for solenoid valve size 22mm, black color. Reference: CON0100001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 pressure centers 24 Vdc - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 pressure centers 24 Vdc - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted pressure centers 24 Vdc - Metal Work

Metal Work

PK-3853ACP24C

€137.12 (€112.39 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, pressure centers, metal body, with connector and coil of 24Vdc. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted pressure centers 110 Vac - Metal Work

Metal Work

PK-3853ACP110

€146.40 (€120.00 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions assisted, pressure centers, metal body, with connector and coil of 110Vac. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 3 ways monostable assisted NC - Metal Work

Metal Work

7040020500

€90.96 (€74.56 tax excl.)

3/8" 5-way monestable, assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm. Reference: 7040020500 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 ways bistable differential - Metal Work - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5 ways differential bistable without coil - Metal Work

Metal Work

7040021300

€118.11 (€96.81 tax excl.)

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 closed centres 24 Vac - Metal Work

Solenoid valve 3/8 5/3 closed centres 24 Vac - Metal Work 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 closed centers 24 Vac - Metal Work

Metal Work

PK-3853CC24A

€167.35 (€137.17 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions, closed centers, metal body, with connector and coil of 24Vca. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 pressure centers 230 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 pressure centers 230 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 pressure centers 230 Vac - Metal Work

Metal Work

PK-3853CP230

€167.35 (€137.17 tax excl.)

3/8" 5-way 3-position solenoid valves, pressure centers, metal body, with connectors and 230 Vac coils. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 3/8 5-way monostable - Metal Work - ADAJUSA

electrovalve 3/8 5-way monostable - Metal Work - ADAJUSA 2

Solenoid valves 3/8

Solenoid valve 3/8 5 ways monostable without coil - Metal Work

Metal Work

7040021100

€106.13 (€86.99 tax excl.)

3/8" 5-way monestable, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/2 monostable series 01V | Aignep | ADAJUSA | price

Solenoid valves 3/8

Solenoid valve 3/8 5/2 monostable - Aignep

Aignep

01VS050004

€66.20 (€54.26 tax excl.)

3/8 5 way Solenoid valve (coil not included), with G3/8" threads, anodized aluminum body, NBR seals. Reference: 01VS050004 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3 ways bistable 230 Vac- Metal Work

Metal Work

PK-383B230

€125.37 (€102.76 tax excl.)

3/8" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. With 230 Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3 ways bistable 24 Vac- Metal Work

Metal Work

PK-383B24A

€125.37 (€102.76 tax excl.)

3/8" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. With 24 Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3 ways monostable NO 110 Vac - Metal Work

Metal Work

PK-383NO110

€101.76 (€83.41 tax excl.)

3/8" 3/2-way monestable pneumatic solenoid valve, (NO), for industrial and general use applications. Connector with coil 110 Vac Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 ways bistable- Mindman S.300 - ADAJUSA

Delivery in 3 days

Solenoid valves 3/8

Solenoid valve 3/8 5 ways bistable 230Vca - Mindman S.300

Mindman

MVSE3004E21

€100.24 (€82.16 tax excl.)

Pneumatic solenoid valve of 3/8" 5 ways bistable,operating voltage of 230Vca. Reference: 281MVSE3004E21Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3-way single-stable assisted NC 230 Vac - Metal Work

Metal Work

PK-383ANC230

€101.76 (€83.41 tax excl.)

3/8" 5-way monestable, assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. With connector and coils 230Vac Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

solenoid valve 3/8 5 ways assisted bistable with coils - Metal Work - ADAJUSA

solenoid valve 3/8 5 ways assisted bistable with coils - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5 biset assisted pathways 110Vac - Metal Work

Metal Work

PK-385AB110

€139.70 (€114.51 tax excl.)

3/8" 5-way bile valve for industrial and general applications. With 110Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

3.5mm fork terminal for screw and 05mm2 cable up to 1.5mm2

Isolated fork terminals

Bag of pre-insulated fork terminals 4.3mm for cable 1.5 up to 2.5mm2

XBS

MVS4,3/2,5

€9.53 (€7.81 tax excl.)

Bag of 100 terminals of pre-insulated fork of 4.3mm for cable from Ø 1.5mm² up to 2.5mm², made of polyamide and electrolytic copper estañado.Color: BlueTerminal diameter: 4.3mmreference: MVS 4.3mm 1.5-2.5mm2Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

NG22-EJ33 selector electric switch 3 positions NA 22mm long lever| ADAJUSA | price

Selectors

Selector 3 positions 2 open contacts (NA) full long lever

XBS

NG22-EJ33

€2.78 (€2.28 tax excl.)

Long lever selector 3 positions maintained, 2 open contacts (NA). The supply includes a selector and a no.Reference: NG22-EJ33

Angled seat valve 1 1/2 2/2 NC | Aignep | Adajusa

Valves with pneumatic actuators

Angled seat valve 1 1/2 NC actuator in technopolymer - Aignep

Aignep

X2YXG10800

€266.73 (€218.63 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1 1/2 thread. PTFE gaskets which allow it to work in a wide range of fluid temperatures (-10ºC to +180ºC). The actuator body is made of technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and increases the...

1 mm pre-insulated hollow tip (bag 1000 units)

Simple insulated toe caps

Bag of 100 pre-insulated 1mm toe

Generico-ELECT

2040161

€1.04 (€0.85 tax excl.)

Bag of 100 pre-insulated toe for 1 mm2 cable, red. Manufactured according to norm . Red color Reference: 2040161 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Double Pre-Insulated Ferrules (100pcs), Insulated Hollow Ferrules for 0.75mm Cable | ADAJUSA | price

Double insulated toe caps

Bag of 100 pre-insulated 0.75mm double toe

Generico-ELECT

2040172

€2.05 (€1.68 tax excl.)

Bag of 100 pre-insulated double hollow toe for 0.75 mm2 cable, gray color. Manufactured according to norm . Gray Reference: 2040172 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Intermediate straight fittings

Intermediate metal fitting diameter 10mm - Metal Work

Metal Work

2L03005

€4.51 (€3.70 tax excl.)

Intermediate straight metal fitting for union 10mm diameter tubes, for pneumatic applications. Reference: 2L03005 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Cylindrical swivel elbow fitting 3/8 tube s10

Fittings swivel elbow

Cylindrical swivel elbow fitting 3/8 tube 10 technopolymer - Metal Work

Metal Work

2L34014

€4.71 (€3.86 tax excl.)

3/8 swivel elbow fitting for 10mm xExt tube. Male cylindrical thread, with O-ring included. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Manufacturer: METAL WORK. Reference: 2L34014...

Straight fittings

Automatic straight racor 1/2 tube 12mm - Metal Work

Metal Work

2001015

€3.68 (€3.02 tax excl.)

Metallic straight fitting with 1/2 cylindrical thread for 12mm xExt tube. Male cylindrical thread, with toric gasket included. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Manufacturer: METAL WORK. Reference: 2001015 Representative image for...

Side stop for DIN rail terminals | price ADAJUSA

Terminal mounting accessories

Side stop for DIN rail terminals

XBS

EW35

€0.21 (€0.17 tax excl.)

Side stop for terminals mounting on din-rail.Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Fittings swivel elbow

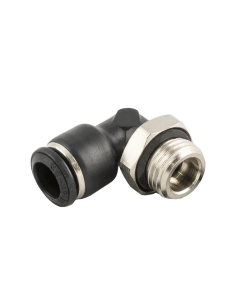

Male cylindrical adjustable elbow fitting 1/8 tube 10mm Series 55000 - Aignep

Aignep

551161018

€2.65 (€2.17 tax excl.)

1/8 male cylindrical adjustable elbow fitting for 10mm tube with metal nut and gasket included, made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Series: 55000 Reference:...

Home

Client support

ADAJUSA

C/ Mercurio, 7 28970 Humanes de (Spain)

+34 911354650 +34 912973850

Summer Hours July and August - Monday to Friday from 7:00 a.m. to 3:00 p.m.

Send a message

Your Account

Create customer account
Create Business Account

Follow us in our social

This website uses its own and third-party cookies to improve our services and show you advertising related to your preferences by analyzing your browsing habits. To give your consent to its use, press the Accept button.

More information Customize cookies

Functional cookies

Yes

Description and cookies

Functional cookies are strictly necessary to provide the services of the shop, as well as for its proper functioning, so it is not possible to refuse their use. They allow the user to browse through our website and use the different options or services that exist on it.


PHP_SESSID	adajusa.es	The PHPSESSID cookie is native to PHP and allows websites to store serialised status data. On the website it is used to establish a user session and to pass state data through a temporary cookie, which is commonly known as a session cookie. These Cookies will only remain on your computer until you close your browser.	Session
PrestaShop-#	adajusa.es	This is a cookie used by Prestashop to store information and keep the user's session open. It stores information such as currency, language, customer ID, among other data necessary for the proper functioning of the shop.	480 hours
rc::a	Google	It is used to read and filter bot requests.	Persistent
rc::c	Google	It is used to read and filter bot requests.	Persistent

Advertising Cookies

Yes

Description and cookies

These are cookies that collect information about the advertisements shown to users of the website. They can be anonymous, if they only collect information about the advertising spaces shown without identifying the user, or personalised, if they collect personal information about the user of the shop by a third party, for the personalisation of these advertising spaces.


ads/ga-audiences	Google	These cookies are used by Google AdWords to re-engage visitors that are likely to convert to customers based on the visitor’s online behaviour across websites.	Session

Analytics cookies

Yes

Description and cookies

Collect information about the user's browsing experience in the shop, usually anonymously, although sometimes they also allow the user to be uniquely and unequivocally identified in order to obtain reports on the user's interests in the products or services offered by the shop.


_ga	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	2 years
_gat	Google	Used by Google Analytics to throttle request rate	1 day
_gat_gtag_UA_#	Google	Used to throttle request rate.	1 minute
_gd#	Google	This is a Google Analytics Session cookie used to generate statistical data on how you use the website which is removed when you quit your browser.	Session
_gid	Google	Registers a unique ID that is used to generate statistical data on how the visitor uses the website.	1 day

Performance cookies

Yes

Description

These are used to improve the browsing experience and optimize the operation of the shop.

Other cookies

Yes

Description

These are cookies without a clear purpose or those that we are still in the process of classifying.

Solenoid valve 3/8 3-way monostable NC 24 Vdc - Metal Work

Questions

Question about the product

16 other products in the same category:

Customers who bought this product also bought:

Client support

Company information

Your Account

Follow us in our social
